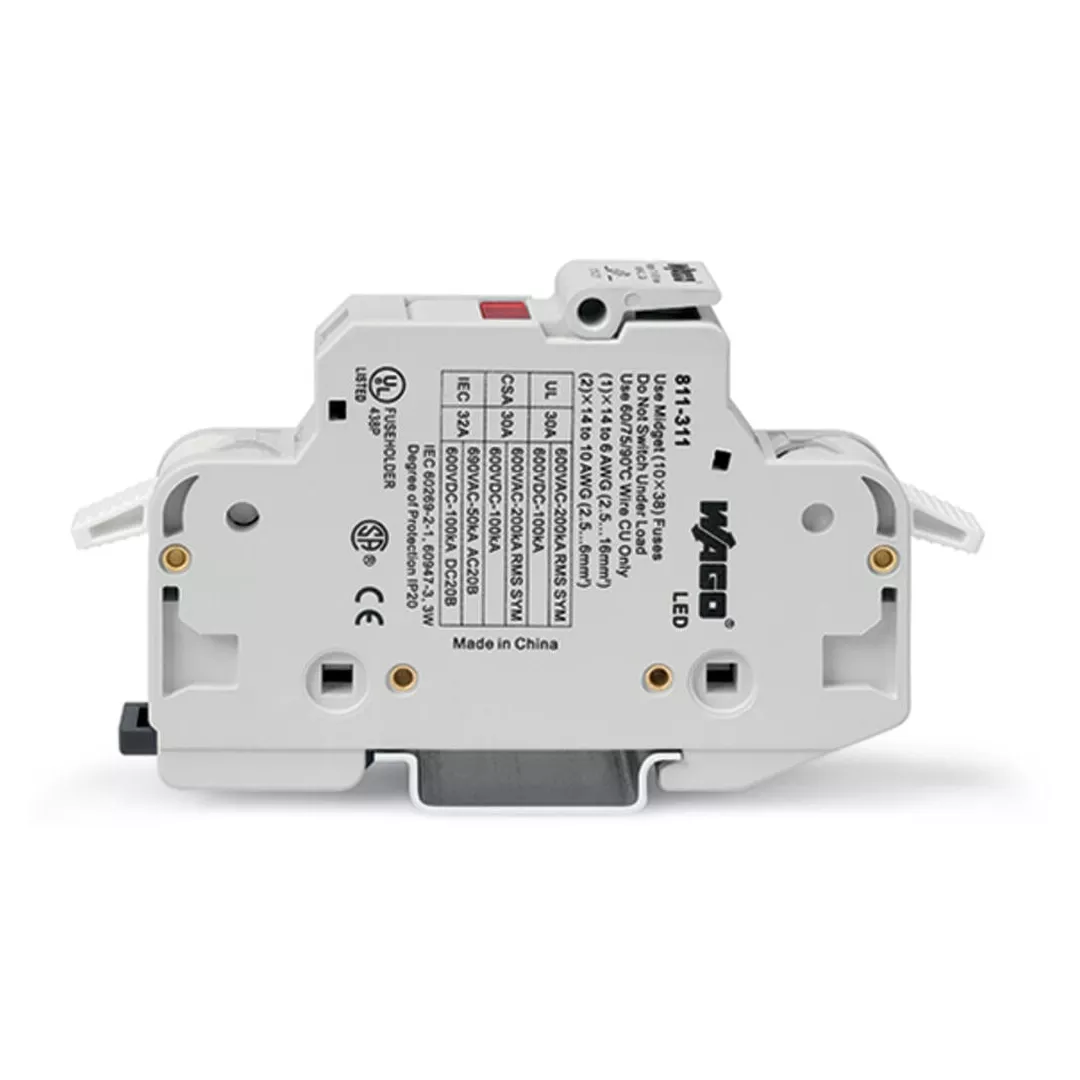

Connect conductors quickly and safely with this fuse terminal block (item number 811-311). Ensure that the strip lengths are between 12 mm and 13 mm when connecting conductors to this fuse terminal block. This product features conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection provides a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the conductor type, this fuse terminal block is ideal for conductor cross sections ranging from 2.5 mm² to 16 mm². It features one level and two clamping points that you can use to connect a single potential / 1 pole. The light gray housing is made of polyamide (PA66) for insulation. These function terminal blocks are mounted using DIN-35 rails..
Specifications
| Brand Name | Wago Corp | Item Name | Fuse Terminal Block |
| Type | 2-Conductor, 1-Level | Voltage Rating | 690 V |
| Amperage Rating | 32 A | Number of Poles | 1 |
| Mounting Type | 35 mm DIN Rail | Power Rating | 3 W |
| Wire Strip Length | 12 – 13 mm | Connection Type | Cage Clamp |
| Temperature Rating | -35 to 85 °C | Block Material | Polyamide |
| Color | Light Gray | Dimensions | 0.689 in W x 2.165 in D x 4.134 in H |
| For Use With | 10 x 38 mm Cylindrical Fuses | Standards | CE Certified, RoHS Compliant, UL94 V0 |
