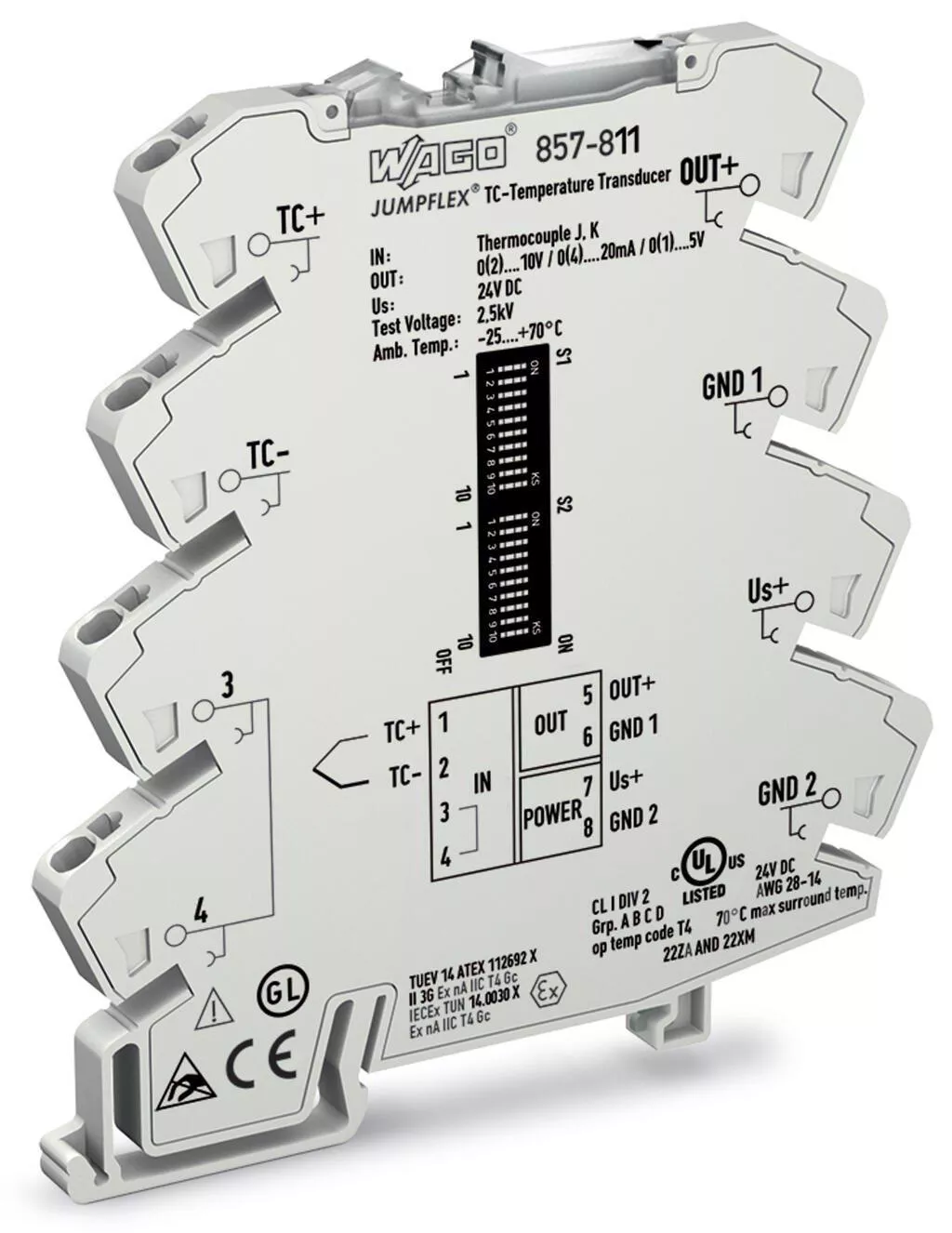

Temperature signal conditioner for thermocouples; Current and voltage output signal; Configuration via software; Supply voltage: 24 VDC; 6 mm module width; light gray.
Specifications
| Brand Name | Wago Corp | Item Name | Signal Conditioner |
| Input Type | TC Sensor | Output Type | Current, Voltage |
| Input Voltage | 24 VDC | Output Voltage | 0 – 5 V, 1 – 5 V, 0 – 10 V, 2 – 10 V |
| Output Current | 20 mA | Connection Type | Push-In |
| Mounting Type | DIN Rail | Temperature Rating | -25 to 70 °C |
| Response Time | 60 – 120 Millisecond | Material | Polyamide |
| Color | Light Gray | Dimensions | 0.236 in W x 3.85 in D x 3.701 in H |
| Standards | CE Certified, DNV Approved, IP20, RoHS Compliant |
