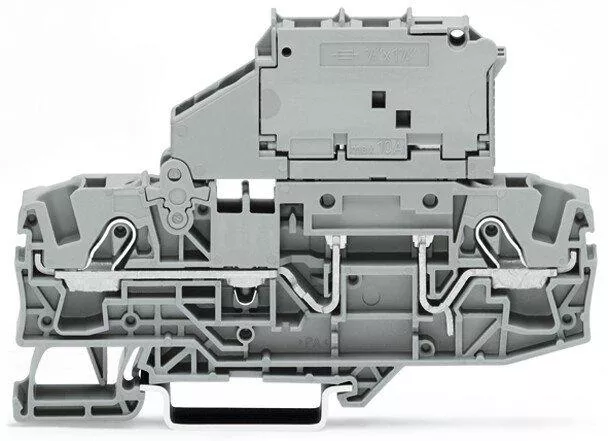

Fuse terminal block, 2006 Series, operating tool Easily, quickly and safely connect conductors with this fuse terminal block (item number 2006-1631). Conductors can only be connected to this fuse terminal block if their strip length is between 13 and 15 mm . Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector outperforms the competition. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be inserted without the need for tools—all thanks to its pluggable design. Depending on the conductor type, this fuse terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 10 mm².
Specifications
| Brand Name | Wago Corp | Item Name | Fuse Terminal Block |
| Type | 1-Level | Voltage Rating | 800 V |
| Amperage Rating | 10 A | Number of Poles | 2 |
| Conductor Size | 6 mm² | Mounting Type | 35 mm DIN Rail |
| Wire Strip Length | 13 – 15 mm | Connection Type | Push-In Cage Clamp |
| Temperature Rating | -60 to 105 °C | Block Material | Polyamide 6.6 |
| Color | Gray | Dimensions | 7.5 mm W x 59 mm D x 96.3 mm H |
| For Use With | 1/4 x 1-1/4 in Glass Cartridge Fuse | Standards | ABS Approved, CCA Certified, CE Certified, CSA Certified, DNV GL Approved, IEC/EN 60947-7-3, KEMA-KEUR, RoHS Compliant, UK-CA, UL 94V-0 Flammability Rating, UL Listed |
| UPC | 044918009892 |
