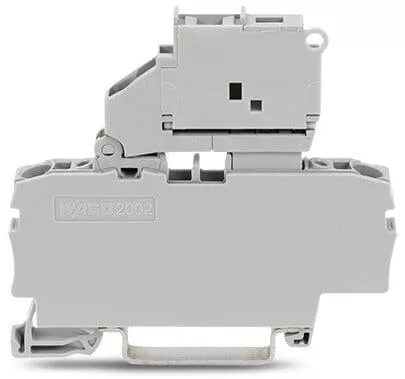

Fuse terminal block, 2002 Series, operating tool Connect conductors quickly and securely with this fuse terminal block (item number 2002-1611). Conductors can only be connected to this fuse terminal block if their strip length is between 10 and 12 mm . This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor’s ferrule is not necessary. This fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². This product is designed for specific Ex applications (please refer to the product datasheet).
Specifications
| Brand Name | Wago Corp | Item Name | Fuse Terminal Block |
| Voltage Rating | 250 V | Amperage Rating | 10 A |
| Number of Poles | 2 | Conductor Size | 12 AWG |
| Mounting Type | 35 mm DIN Rail | Wire Strip Length | 0.47 in |
| Spacing | 6 mm | Connection Type | Push-In Cage Clamp |
| Temperature Rating | 105 °C | Color | Gray |
| For Use With | 5 x 20 mm Miniature Metric Fuse | UPC | 044918118631 |
