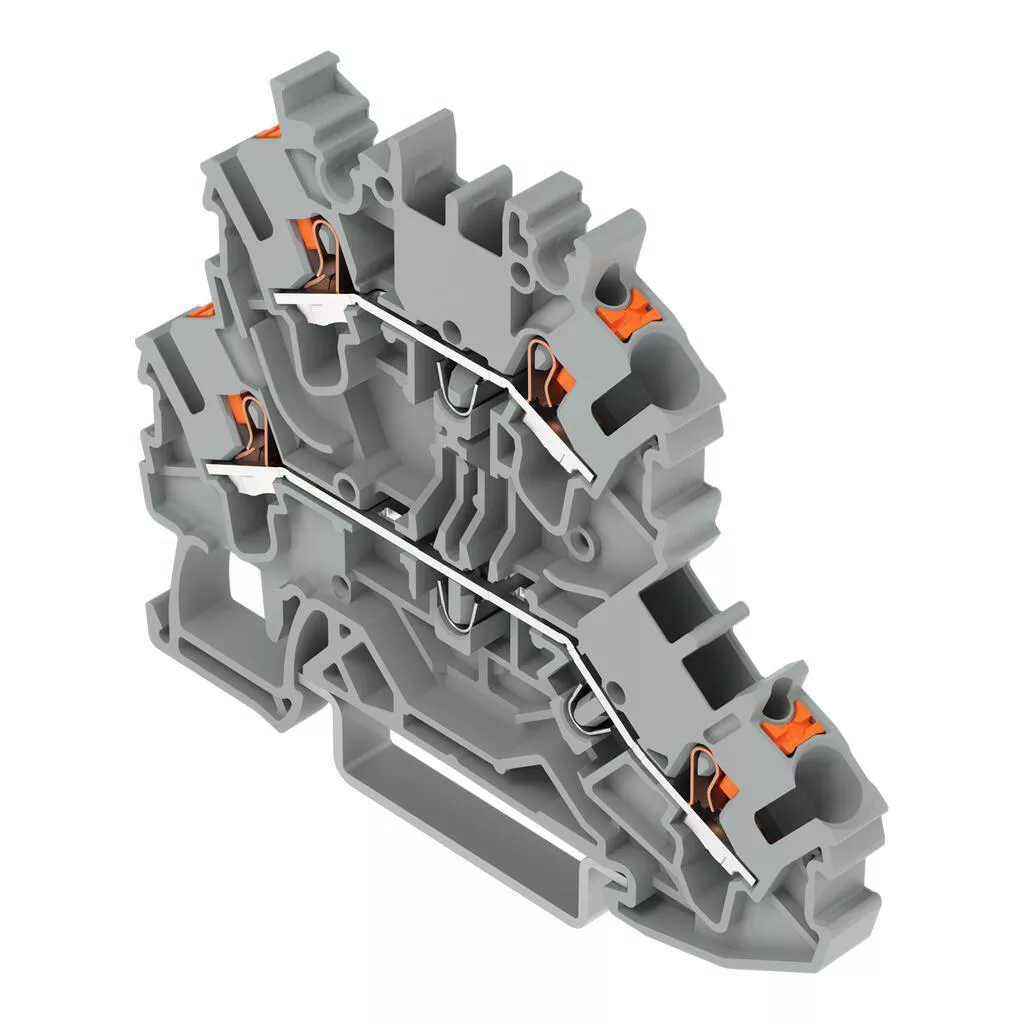

Enjoy easy electrical installations with this double-deck terminal block (item number 2202-2201). The double-deck terminal block also functions as a through terminal block. Strip lengths must be between 10 mm and 12 mm when connecting conductors to this double-deck terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector delivers reliable performance. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be inserted without needing to use any tools—all thanks to its pluggable design. Depending on the conductor type, this double-deck terminal block is ideal for conductor cross sections ranging from 0.25 mm² to 4 mm². It has two levels. Two potentials can connect using the four clamping points The gray housing is made of polyamide (PA66) for insulation. These through rail-mount terminal blocks are mounted using DIN-rails 35 x 15 or DIN-rails 35 x 7.5.. This product is designed for specific Ex applications (please refer to the product datasheet).
Specifications
| Brand Name | Wago Corp | Item Name | Double Deck Terminal Block with Push Button |
| Voltage Rating | 500 V | Amperage Rating | 23 A |
| Conductor Size | 22-12 AWG Solid/Stranded, 2.5 mm² | Mounting Type | 35 x 15 mm DIN Rail, 35 x 7.5 mm DIN Rail |
| Series | 2202 | Power Rating | 0.766 W |
| Wire Strip Length | 10 – 12 mm | Connection Type | Push-In Cage Clamp |
| Temperature Rating | -60 to 105 °C | Block Material | Polyamide |
| Color | Gray | Dimensions | 5.2 mm W x 51.7 mm D x 69.7 mm H |
| Standards | cURus Certified, Flammability Class Per UL94 , IEC/EN 60947-7-1, RoHS Compliant, UL 1059 Listed, UL-US-L45172-6187178-11508102-1 |
