FEATURES:- Using CAT.5 network patch cords support power for the wireless AP/CPE and IP camera/PTZ- Networking standard: IEEE802.3af/at/bt- POE power light blinks to determine the power status of the receiving end, and each blink is 2.7 watts.- PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart- Upload port automatic flip (Auto MDI / MDIX)- 6KV lightning protection,8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protection- The Max output power of the port is 60W, which is convenient for hi-power equipment- Zero configuration feature power supply is automatically supplied to the adaptive equipment
Specifications

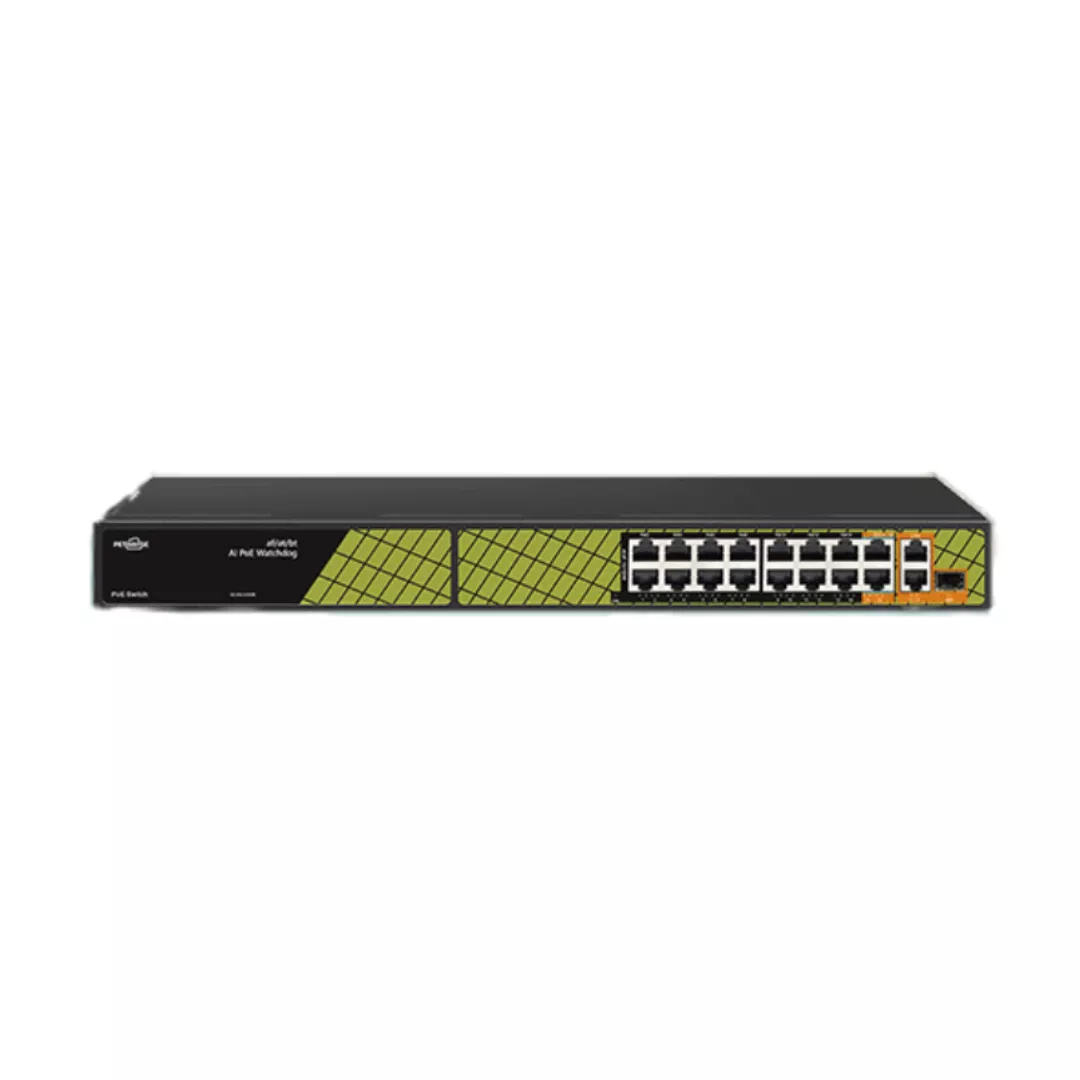

| Brand Name | Uniview | Item Name | AI POE Switch with Watchdog |
| Port Type | (14) 10/100/1000 Mbps PoE Ports (RJ45), (2) 10/100/1000 Mbps PoE Ports (RJ45), (2) 10/1000 Mbps Uplink Port (RJ45), (1) 10/1000 Mbps SFP | Protocol | IEEE 802.3i 10 Base-T, IEEE 802.3u 100 Base-TX, IEEE 802.3ab 1000 Base-T, IEEE 802.3x FlowControl, IEEE 802.3af/at/bt Power over Ethernet |
| Power Supply | 110 – 220 VAC, 300 W | Length | 430 mm |
| Width | 180 mm | Height | 45 mm |
| Temperature Rating | -10 to 55 °C | Environmental Conditions | 10 – 90% Non-Condensing Operating Humidity |
| Standards | CE Certified, FCC Part15 Class B Approved, VCCI Class BEN55022 (CISPR 22), C-Tick Certified |
