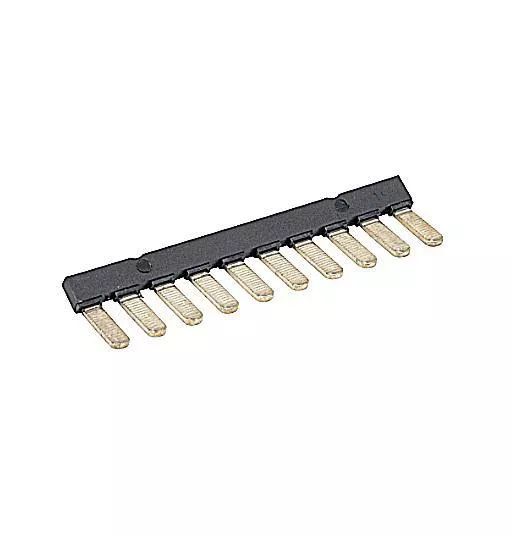

PC8-10 Lateral Jumper Bar, Black. IP20 Comb Jumper bars, direct insertion in the screw clamp before tightening the screws, above the eventual conductor (if conductor used with ferrule, we recommend the use of long ferrule for optimized mounting ergonomy with test disconnect terminal blocks), Multiple versions available in precut poles for test disconnect terminal blocks applications.
Specifications
| Brand Name | TE Connectivity | Item Name | Jumper Bar |
| Type | Lateral | Amperage Rating | 50 A |
| Material | Polyamide | Voltage Rating | 630 V |
| Ferrule Hole Spacing | 8 mm | Overall Length | 22 mm |
| Width | 78 mm | Specifications | -67 – 230 °F |
| Color/Finish | Black | For Use With | C6/8, C6/8.ST4, D6/8.ADO, D6/8.ADO.NC, DB4/8.A.ADO3, DB4/8.ADO, DH4/8.A.ADO, DH4/8.ADO, DR4/8.A.ADO3, DRE4/8.A.ADO3, DS4/8.A.ADO3, DS4/8.ADO, DSE4/8.A.ADO3, DSE4/8.ADO, E6/8, ES8-CG, M6/8, M6/8.2A.G, M6/8.NC, M6/8.S, M6/8.SB, M6/8.SNB, M6/8.ST, M6/8.STP, MS6/8, ZS10-PE-R1, ZS10-R1 Terminal Blocks |
| Standards | UL 94V-0 |
