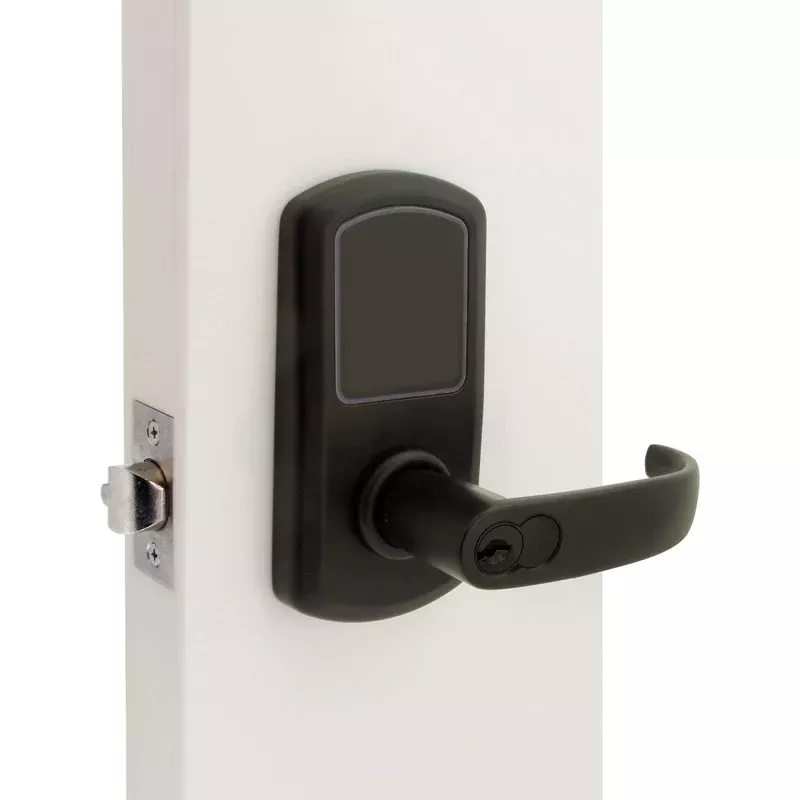

TownSteel E-Elite 5000 Series Grade 1 Touch Screen Electronic Lock SFIC w/WiFi -Flat Black
The TownSteel E-Elite Grade 1 Electronic Locks are truly one of a kind.
Why? Because they don’t require ANY extra drilling in the door! Just a standard 2 1/8″ Hole with through bolts like standard Commercial Doors will (should) have!
Programming Features
- 400 user codes interchangeable with RFID keycards/ stickers
- Code Length: 6 to 10 digits, with anti-pry
- Powered with 4 AA Alkaline batteries, up to 1 year battery life
- System Settings: Passage Mode, Verification Mode, and Sound Adjustment
- RF (wifi) Technology through our mobile app (download in the play store)
- Must also purchase this gateway
Mechanical Specifications
- Door Thickness: 1-3/4″
- Backset: 2-3/4″ standard
- Clutched Trim
- Latch bolt: stainless steel, deadlocking, “throw
- Faceplate: 1-1/8″x 2-1/4″
- Strike: ASA strike standard, 1-1/4″ x 4-7/8″
Cylinder Specifications
-
Small format IC (SFIC) 6 or 7 pin – Core not included
Certifications
-
ANSI/BHMA A156.2 — A156.2-2011 Grade 1 certified
-
ANSI/BHMA A156.25 — Meets or exceeds all applicable requirements
-
UL/ULC — UL 10C 3-hour rated
-
BAA – Meets guidelines of the Buy American Act
-
ADA – Meets requirements of the Americans with Disabilities Act
-
RoHS – Meets requirements of EU RoHS Directive 2002/95/EC
Warranty
- 1-year limited for electronic
- 4-year limited for finish
- 9-year limited for mechanical
Downloads
- E-Elite Door Template
- E-Elite Lock Installation Guide
- E-Elite 5000 Programming Guide
