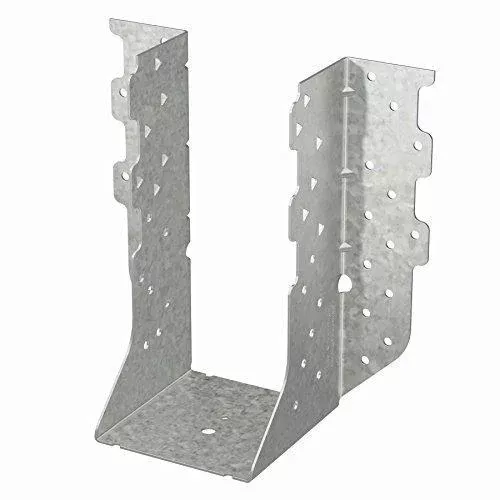

Model No. HTU26-2Joist Size. Double 2×6Gauge. 16Width (in.) 3 5/16Height (in.) 5 7/16B (in.) 3 1/2Coating/Material. Zinc Galvanized, G90
The HTU face-mount truss hanger has nail patterns designed specifically for shallow heel heights, so that full allowable loads (with minimum nailing) apply to heel heights as low as 3 7/8″. Minimum and maximum nailing options provide solutions for varying heel heights and end conditions.
Alternate allowable loads are provided for gaps between the end of the truss and the carrying member up to 1/2″ max. to allow for greater construction tolerances (maximum gap for standard allowable loads is 1/8″ per ASTM D7147).
Options
- HTU may be skewed up to 67?1/2°. Contact us for Configurable Options and Special orders
Installation:
- Install with 16d common nails and 10d x 1-1/2 in. nails, or 9 x 1-1/2 in. Strong-Drive SD Connector screws
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- See alternate installations in Specifications
Note: Product dimensions and/or Screw or Nail holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: HTU_Face-Mount_Truss_Hanger.pdf
