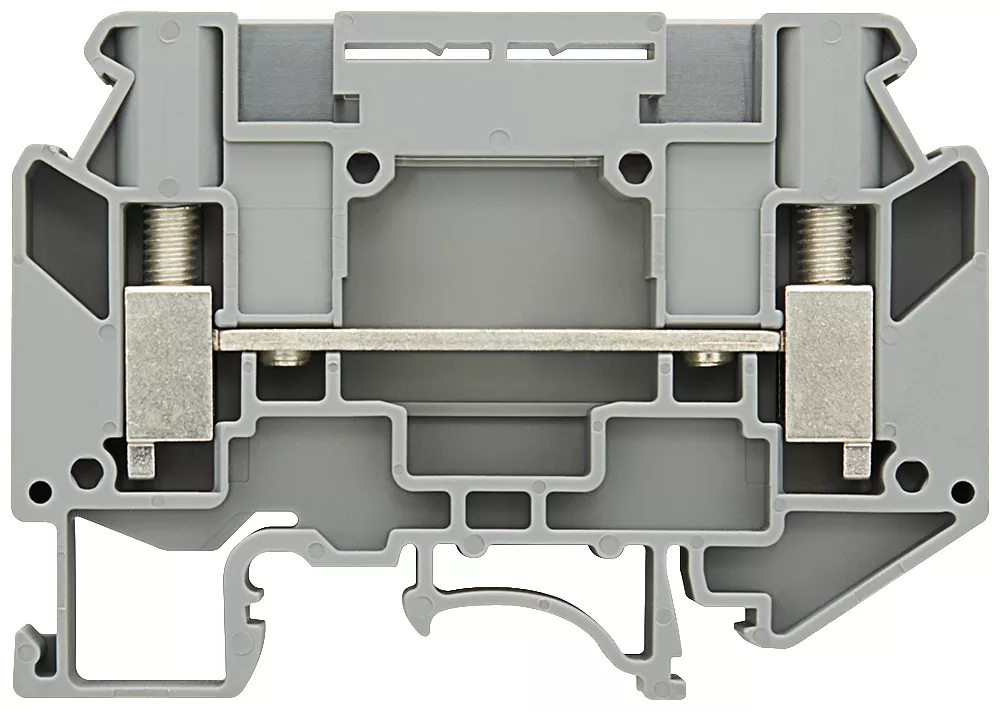

Instrument isolating terminal, 6 mm2 through-type, screw fixing, 2 connection…
Specifications
| Brand Name | Siemens | Sub Brand | Sentron |
| Item Name | Terminal Block | Type | Feed-Through |
| Voltage Rating | 800 V | Amperage Rating | 41 A |
| Conductor Size | 0.5 – 10 mm² | Mounting Type | 35 mm DIN Rail |
| Wire Strip Length | 10 mm | Spacing | 6 mm |
| Connection Type | Screw | Temperature Rating | -60 to 105 °C |
| Block Material | Thermoplastic | Color | Gray |
| Dimensions | 67 mm L x 46.8 mm W x 66.5 mm H | For Use With | Measuring Transformer |
| Standards | CE Certified, CSA Certified, EAC Approved, UR Approved |
