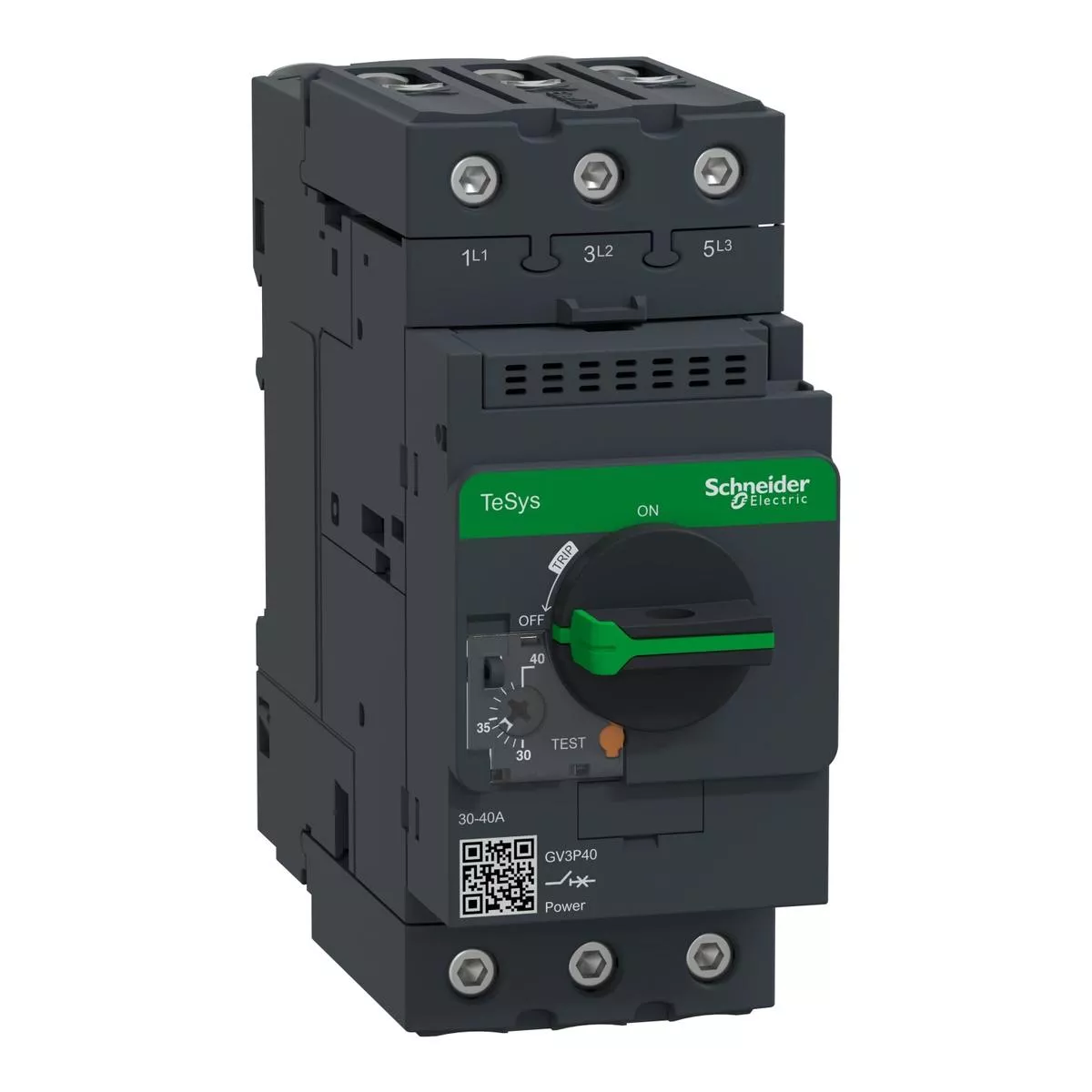

SchneiderMotor circuit breaker, GV3, 3P,thermal magnetic, EverLink terminals

Model

GV3P40

GV3P50

product type

Motor circuit breaker

Motor circuit breaker

Device application

Motor protection

Motor protection

Trip unit technology

Thermal-magnetic

Thermal-magnetic

poles description

3P

3P

Network type

AC

AC

Utilisation category

AC-3 conforming to IEC 60947-4-1

AC-3 conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-4-1

50/60 Hz conforming to IEC 60947-4-1

Fixing mode

35 mm symmetrical DIN rail: clipped

35 mm symmetrical DIN rail: clipped

Panel: screwed (with 3 x M4 screws)

Panel: screwed (with 3 x M4 screws)

Motor power kW

18.5 kW at 400/415 V AC 50/60 Hz

22 kW at 400/415 V AC 50/60 Hz

22 kW at 500 V AC 50/60 Hz

30 kW at 500 V AC 50/60 Hz

37 kW at 690 V AC 50/60 Hz

45 kW at 690 V AC 50/60 Hz

Breaking capacity

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2

50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2

12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
