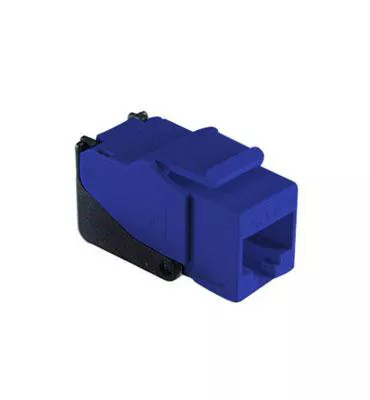

Save time and money on the jobsite with the new Snap and Go Cat 5e Keystone Connector. Never worry about not having a punchdown tool again with this amazing self terminating connector.FEATURES AND BENEFITS:• RoHS Compliant• Wire without a flat survace or palm tool.• Improves cable performance by maintaining tight wire twists.• Exceeds TIA 568 standards.• No punchdown tool required to terminate cable.• Terminate 10-20% faster than with a standarded RJ45 punchdown tools.
Meets TIA T568B.2-10 standard up to 500 MHz
Wire without a flat surface or palm tool
Improves cable performance by maintaining tight wire twists
No punchdown tool required to terminate cable
Terminate 10-20% faster than with standard RJ45 punchdown tools
Specifications
Brand Name
On-Q
Sub Brand
On-Q
Item Name
Category 6 Keystone Connector
Type
RJ45 Female
Cable Type
Category 6
Number of Positions
8
Contacts
50 µin 24K Hard Gold Over 70 – 100 µin Nickel Spring Wire, Phosphor Bronze Alloy with plated with 0.0001 µin Silicon alloy
Color
Blue
Cable Size
24-22 AWG
Number of Contacts
8
Amperage Rating
2.1 A at 72 °C
Contact Resistance
20 mO (Maximum, Spring Wire Contact), 2.5 mO (maximum, IDC Contact)
Finish
Injection Molded Plastic Etched with Diamond Core
Insertion Loss
0.01 – 0.4 dB Typical
Insulation Resistance
500 mO
Mounting Type
Wallplate, Strap
Plug Retention Force
50 N at 60 sec
Temperature Rating
-10 to 60 °C
Dimensions
0.657 in x 0.866 in x 1.358 in
Environmental Conditions
0 – 93% (Relative Humidity, Non-Condensing)
Standards
UL Listed, RoHS Compliant
Application
For Residential
UPC
804428031062
