FEATURES AND BENEFITS:•RoHS Compliant•Easily terminate all four pairs using the Legrand Punch & Go Tool (AC3400)•RJ45 Inserts can be terminated with any 110 punchdown tool•Exceeds EIA/TIA 568A/B Cat 5e Performance Specifications•Cat5 Cable Rating: Cat5e•Humidity: 93% Maximum Noncondensing•Material: High Impact Plastic•Operating Temperature (Celsius): -10°C to 60°C•Performance Rating: Meets TIA/EIA-568-B.2-1 Cat.6 Short Link requirements•Product Fits Into: Keystone Cutout•Storage Temperature: -40°C to 70°C
ETL Verified to Category 5e component standard: Ensures standards compliance
RJ45 Inserts can be terminated with any 110 punchdown tool
Exceeds EIA/TIA 568A/B Cat 5e Performance Specifications
Available in Black, Brown, White, Light Almond, Grey, Blue, Orange, Ivory and Red
Contractor packs available in quantities of 50. To order, use part number WP3475-LA-50
Specifications
Brand Name
On-Q
Sub Brand
On-Q

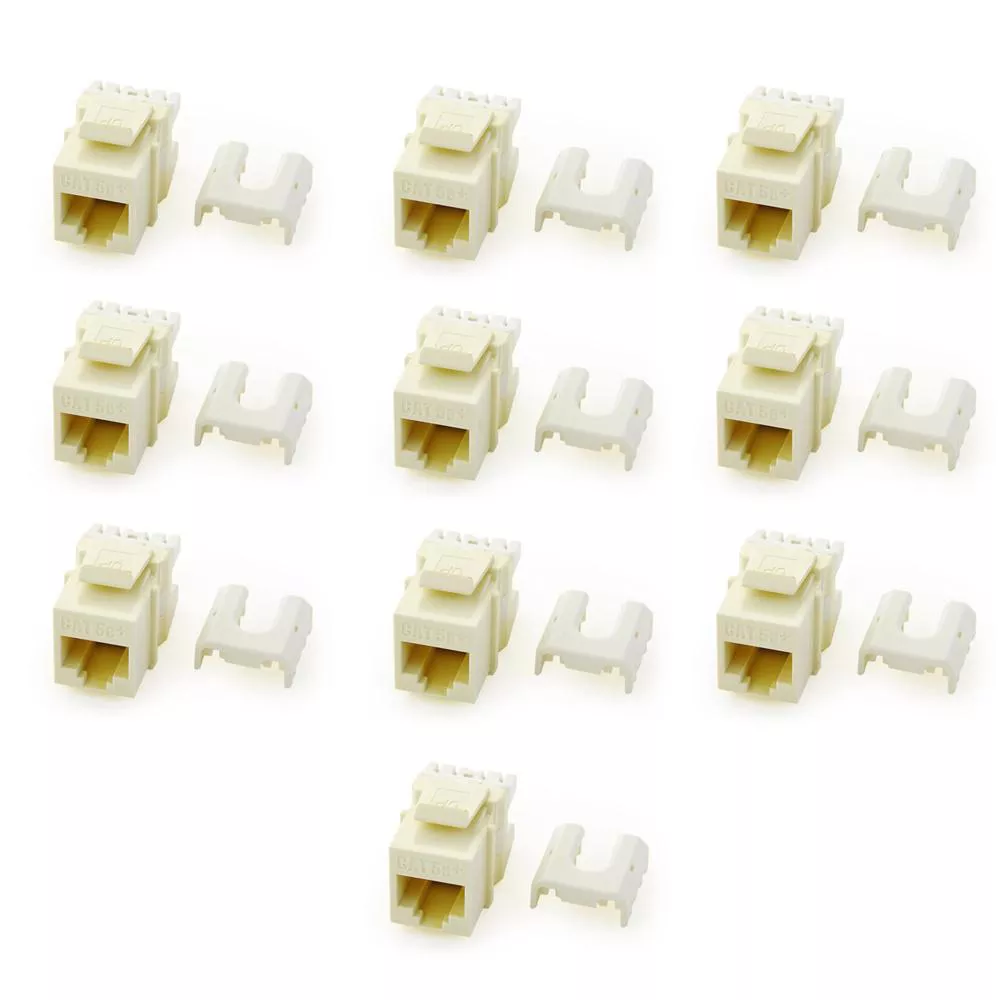

Item Name
Keystone Insert
Type
RJ45 Female
Cable Type
Category 5E
Number of Positions
8
Termination Style
A/B Quick Connect
Color
Light Almond
Number of Contacts
8
Material
High Impact Flame Retardant Plastic
Temperature Rating
-10 to 60 °C
Dimensions
0.665 in W x 1.18 in D x 0.87 in H
Environmental Conditions
93% Maximum Non-Condensing
Standards
CAN/CSA-C22.2 No. 182.4-1990, UL Listed, RoHS Compliant, ANSI/UL 1863
Application
For Round and Flat Solid Core Cable
UPC
804428025429
Packages
