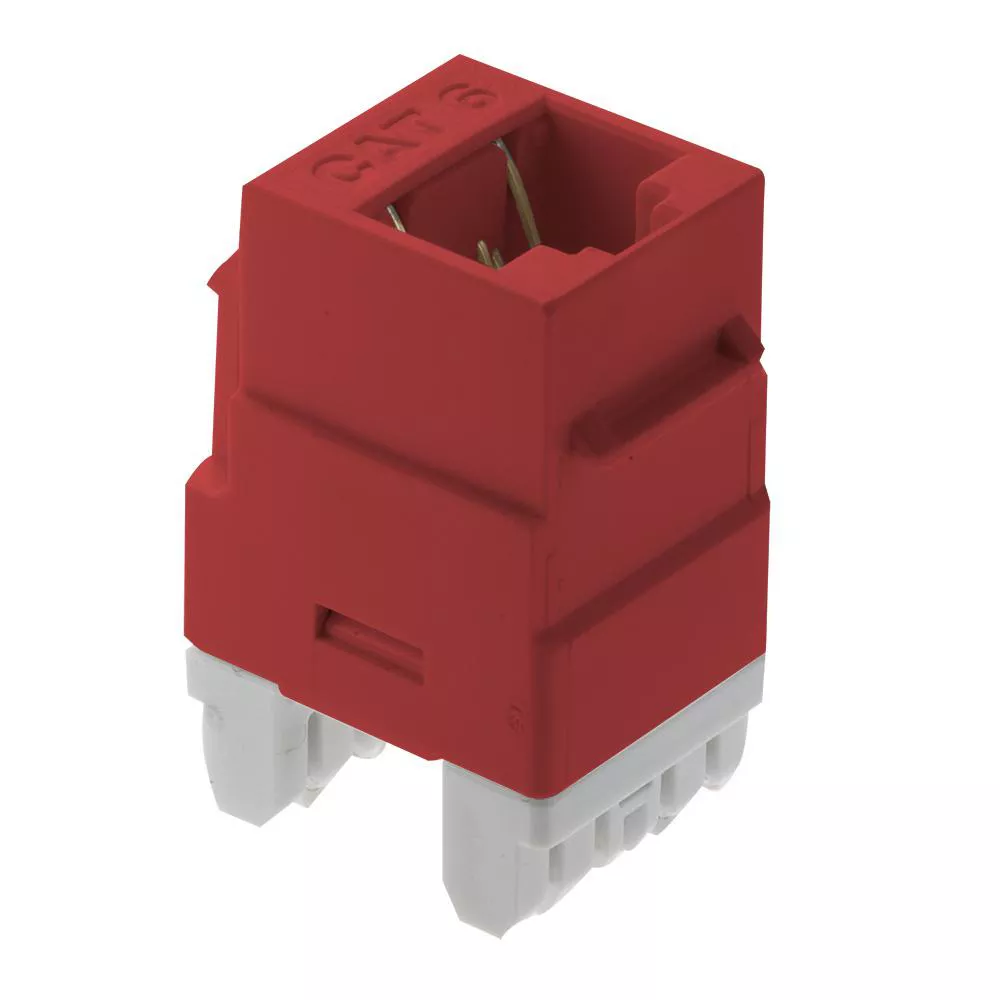

This high quality insert is for use in all Keystone Wall Plates.FEATURES AND BENEFITS:•RoHS Compliant•Creates an Ethernet port•Connects to Cat5, Cat5e, or Cat6 cables terminated with RJ-45 plugs Rear retention caps ensure secure wire termination•Vertical design for easy punchdown termination•T658A and T568B wiring labels included•Meets Category 6 described in TIA/EIA-568-B.2•Insertion and extraction life is 750 Cycles Min•Jack housing is high-impact, flame resistant plastic, UL 94V-0•Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
Standard RCA front jack
Connects to Cat5, Cat5e, or Cat6 cables terminated with RJ-45 plugs Rear retention caps ensure secure wire termination
Vertical design for easy punchdown termination
T658A and T568B wiring labels included
Meets Category 6 described in TIA/EIA-568-B.2
Insertion and extraction life is 750 Cycles Min
Jack housing is high-impact, flame resistant plastic, UL 94V-0
Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
Specifications
Brand Name
On-Q
Sub Brand
On-Q
Item Name
Module
Type
RJ45 Female Cat 6 Keystone Insert
Color
Red
Contact Resistance
20 mO
Material
Plastic
Finish
Thermoplastic
Insertion Loss
0.01 to 0.4 (typical) dB
Insulation Resistance
10 MO
Temperature Rating
14 – 140 ®F
Environmental Conditions
0 – 93%
Standards
CSA, cULus, RoHS, ANSI/UL 1863, Flame-Retardant Plastic UL 94V-0
Application
Residential Applications
UPC
804428024446
