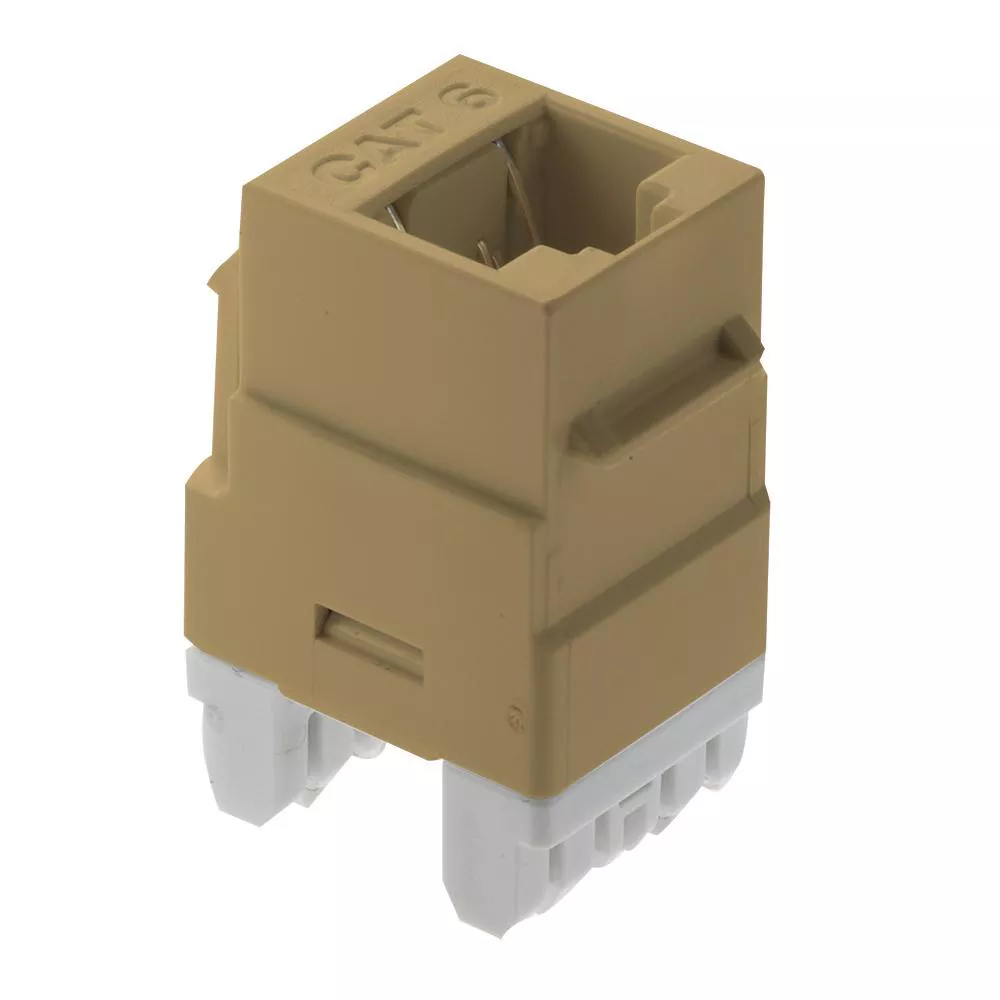

This high quality insert is for use in all Keystone Wall Plates.FEATURES AND BENEFITS:•RoHS Compliant•Creates an Ethernet port•Connects to Cat5, Cat5e, or Cat6 cables terminated with RJ-45 plugs Rear retention caps ensure secure wire termination•Vertical design for easy punchdown termination•T658A and T568B wiring labels included•Meets Category 6 described in TIA/EIA-568-B.2•Insertion and extraction life is 750 Cycles Min•Jack housing is high-impact, flame resistant plastic, UL 94V-0•Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
Standard RCA front jack
Connects to Cat5, Cat5e, or Cat6 cables terminated with RJ-45 plugs Rear retention caps ensure secure wire termination
Vertical design for easy punchdown termination
T658A and T568B wiring labels included
Meets Category 6 described in TIA/EIA-568-B.2
Insertion and extraction life is 750 Cycles Min
Jack housing is high-impact, flame resistant plastic, UL 94V-0
Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
Specifications
Brand Name
On-Q
Sub Brand
On-Q
Item Name
Category 6 Keystone Insert
Type
RJ45 8(4), Punchdown
Cable Type
Category 6
Termination Style
Insulation Displacement, A/B
Color
Ivory
Cable Size
22 AWG
Material
High Impact Flame Retardant Plastic
Mounting Type
Wallplate or Strap, Vertical
Standards
ANSI/UL 1863, CAN/CSA C22.2 No. 182.4-1990, T568
Application
For Residential, Flat Cable, Round Cable, Solid Core
UPC
804428024385
