Constructed with a robust, wireless transparent ABS plastic material, this lightweight enclosure is designed to integrate wireless devices into traditional structured wiring installations.The enclosure mounts easily for both surface and recessed applications, and hinged door is equipped with extra venting along the vertical plane for superior heat dissipation. FEATURES & BENEFITS:•RoHS Compliant•Made with ABS plastic, the enclosure is designed to integrate wireless devices without interference.•Universal mounting grid maximizes compatibility with 3rd party products without additional brackets.•Installs into a single stud bay and staggered mounting tabs allow multiple enclosures to mount in adjacent stud bays. •Tapered design allows enclosures to stack for efficient transportation and warehousing.•Top surface includes five 2″ knockouts; rubber grommets available for purchase (AC1034).•Bottom surface includes two AC receptacle box knockouts and two 1 1/4″ knockouts.•Compatible for both surface or recessed mounting applications.•UL listed.
Made with ABS plastic, the enclosure is designed to integrate wireless devices without interference
Universal mounting grid maximizes compatibility with 3rd party products without additional brackets.
Installs into a single stud bay and staggered mounting tabs allow multiple enclosures to mount in adjacent stud bays.

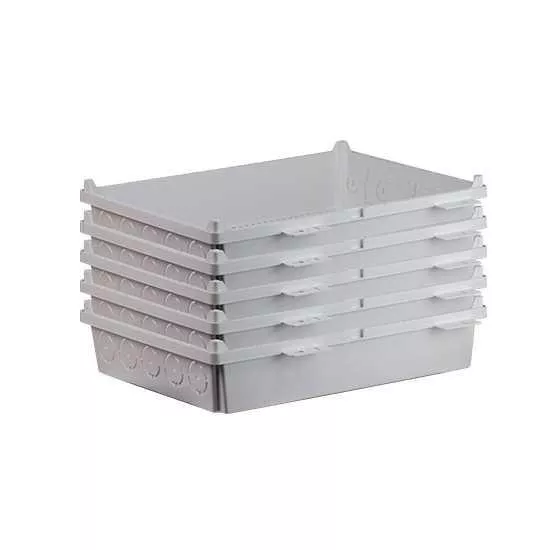

Tapered design allows enclosures to stack for efficient transportation and warehousing.
Top surface includes five 2” knockouts:rubber grommets available for purchase (AC1034).
Bottom surface includes two AC receptacle box knockouts and two 1 1/4” knockouts.
UL listed.
Specifications
Brand Name
On-Q
Item Name
Enclosure without Cover
Type
Enclosure
Width
17.1 in
Depth
4.17 in
Height
20 in
Cover Type
Hinged
Material
ABS
Color
White
UPC
801128432786
Packages
