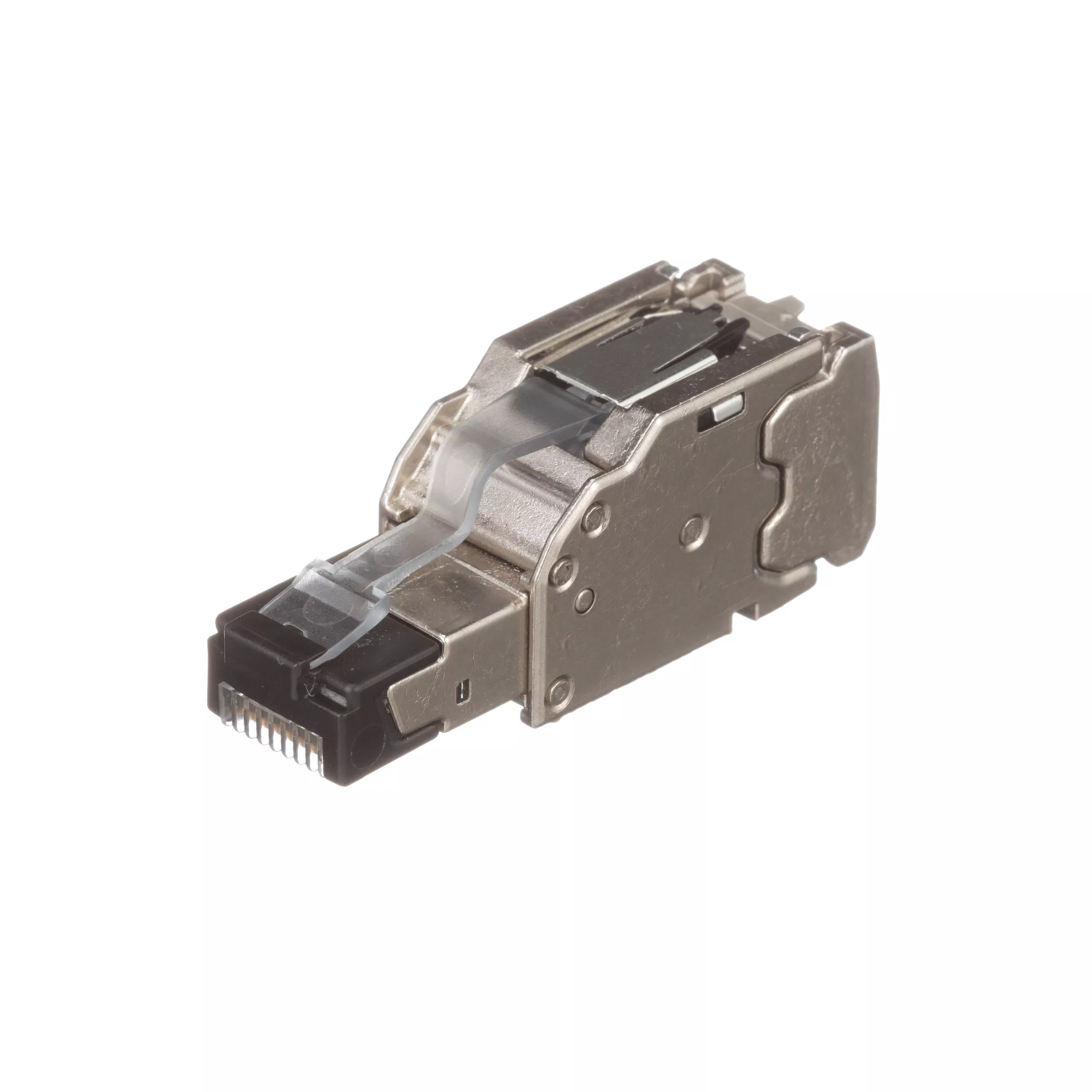

The TX6A Shielded Field Term RJ45 Plug is a simple-to-attach plug for field termination of 4-pair shielded twisted pair cable. Providing Category 6A performance the TX6A plug is also compatible with Category 6 and 5e shielded systems. The two-piece straight TX6A shielded plug terminates 4-pair, 22 – 26 AWG, 100 ohm shielded twisted pair cable and uses proven TG-style forward motion termination technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist.
Specifications
| Brand Name | Panduit | Sub Brand | IndustrialNet™, TX6A™ |
| Item Name | Shielded Field Term Plug | Type | Shielded Field Term Plug |
| Cable Type | Category 6a | Termination Style | Plug-in |
| Color | Silver | Cable Size | 26-22 AWG |
| Contact Resistance | 100 O | Material | Polycarbonate |
| Temperature Rating | -40 to 85 °C | Dimensions | 0.54 in W x 1.83 in D x 0.71 in H |
| Standards | ANSI/TIA 568.2-D Category 6A and ISO 11801 Class E, ANSI/TIA-1096-A, IEC 60603-7, IEC 60529, UL 1863, UL 2043 Listed, RoHS Compliance | UPC | 613056579705 |
