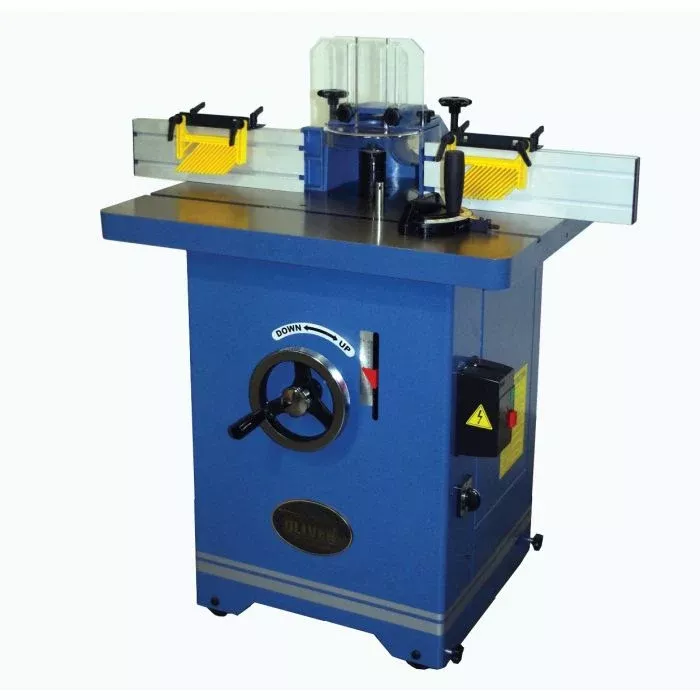

Oliver Machinery Shaper 3HP 1Ph

The Oliver 10047 Shaper is a precision machine perfect for edge-profiling or making door stiles, rails, and panels. We offer this machine with either a 3HP 1Ph or 5HP 1Ph motor to meet various power needs.
Large cast iron table is precision ground table to provide a solid work surface.Table features pre-drilled and threaded holes for optional power feeder.Full cabinet stand includes wheels and locks.1-1/4” interchangeable spindle included, other optional sizes available.Optional router bit collets available.Four spindle speeds for versatility.Belt changes are quick and convenient with unique tensioner.Poly V-belt drive for smoother operation.Spindle reverses for more options with each set-up.Four inches of spindle travel allows more set-up options.Starting pin for irregular shapes included.Fence is independent and includes micro adjustments.Adjustable hold downs add to a safer operation.Extra large handwheel for easy and quick height adjustment.Miter gauge included.Magnetic controls for added safety.Powerful TEFC motor in 3HP to meet your needs. (1Ph Only)
Spindle Speeds 4,000, 6,000, 8,000, 10,000 RPM / Spindle Diameter 1-1/4” / Vertical Spindle Travel 4″ / Spindle Direction Reversible / Under Nut Capacity 4” with 1-1/4” Spindle / Table Opening 6-1/4″ / Large Insert Opening 4-5/16” / Small Insert Opening 2-1/2” / Table Height 34-3/8” / Table Size 32” x 26” / T-Slot 3/4” x 3/8” / Fence Size (2) 4-13/16” x 16” / Dust Port Diameter 4″ / Minimum CFM 800 / Table Dimensions 40” x 27”
