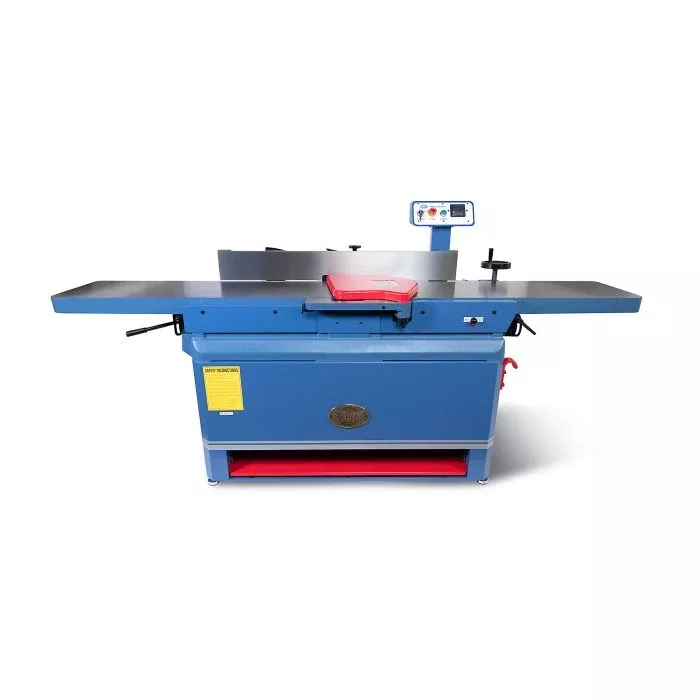

Oliver Machinery 12″ Parallelogram Jointer with Oliver HCX Helical Cutterhead 5HP, 3PH

Extra-long precision ground tables provide a stable work surface.Parallelogram design provides smooth accurate cuts with easy adjustability.Massive cast iron frame offers stable table support.Oliver HCX Helical cutterhead includes premium 4-sided cutting inserts which are easy to replace.Wixey DRO shows table infeed table movement for precision cuts.Pre-drilled bracket for easy (optional) power feed mounting.Foot activated emergency power shutoff.Lever controlled outfeed table allows easy adjustment.Rack & Pinion style cast-iron fence features positive stops at 45° and 90°.Easy to read depth of cut gauge.Powerful 5HP 3Ph TEFC motor.Poly V-belt drive efficiently delivers power to the cutterhead.
Infeed Table Travel 3/4″, Cutterhead Speed 5,500 (RPM), Number of Knives (helical) 56 Inserts, Maximum Depth of Cut 1/8″, Rabbeting Capacity 3/4″, Dust Port Diameter 6″, Table Dimensions 88”L x 12”W, Table Height 34-3/4”, Fence Dimensions 47”L x 6”W, Fence Tilts 45°, Positive Stops 90° and 45°, Motor 5HP 3Ph 230V/460V (prewired 230V).
Includes: extra inserts & screws, T-wrench, push blocks.Does not include power cable or plug.
View Manual (PDF)
