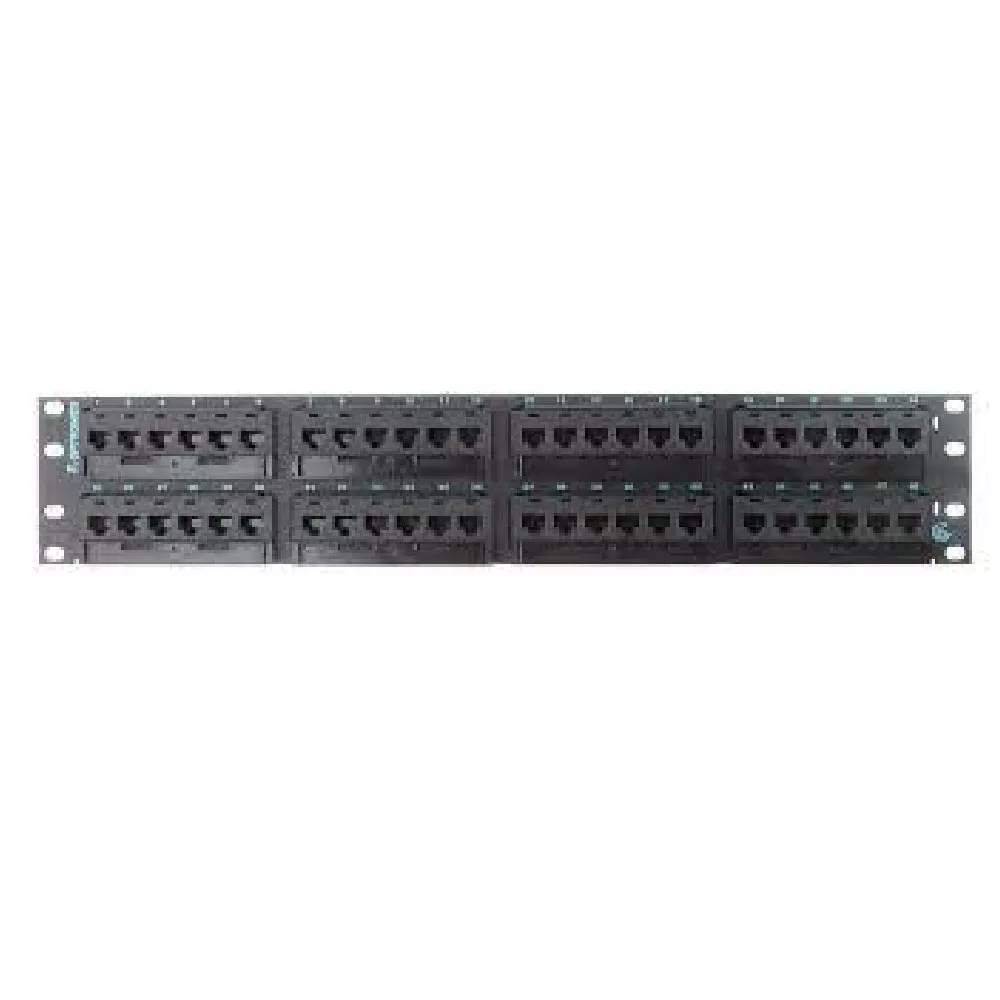

Clarity 6 48-port high density Category 6 patch panel is component compliant to EIA/TIA Category 6 performance requirements. It occupies two rack units, and measures 19″ x 3.5″. Jacks are grouped in six-port modules. Part of the Clarity 6 link and channel solution that provides significant installed performance headroom.
ETL verified to TIA Category 6 component spec: Ensures component performance.
Center tuned to Clarity 6 patch cords: More transparent mated union.
Universally wired 110 termination: Supports T568A and T568B installs.
New IDC housing: Handles larger Category 6 conductors.
Supplied rear cable management: Supports good cabling practice.
High density design: Maximizes rack utilization.
RoHS compliant: Lead free.
Specifications
Brand Name
Ortronics
Sub Brand
Ortronics
Item Name
Patch Panel
Type
8-Position, High Density
Number of Ports
48
Rack Units
2
Mounting Type
Rack
Termination Style
110 Punchdown
Material
Aluminum/High Impact Thermoplastic/Polycarbonate
Series/Model
Clarity
Number of Pairs
4
Conductor Size
26-22 AWG
Interface
Category 6
Color
Black
Dimensions
19 in L x 3.5 in H
Includes
Mounting Screw Kit and Tie Wraps, Instruction Sheet
Standards
Buy American Act Compliant, ETL Listed, LEED Certified, RoHS 2011/65/EU Compliant, UL Listed in File Number E131600
Application
For Commercial, Industrial
UPC
662875441274
