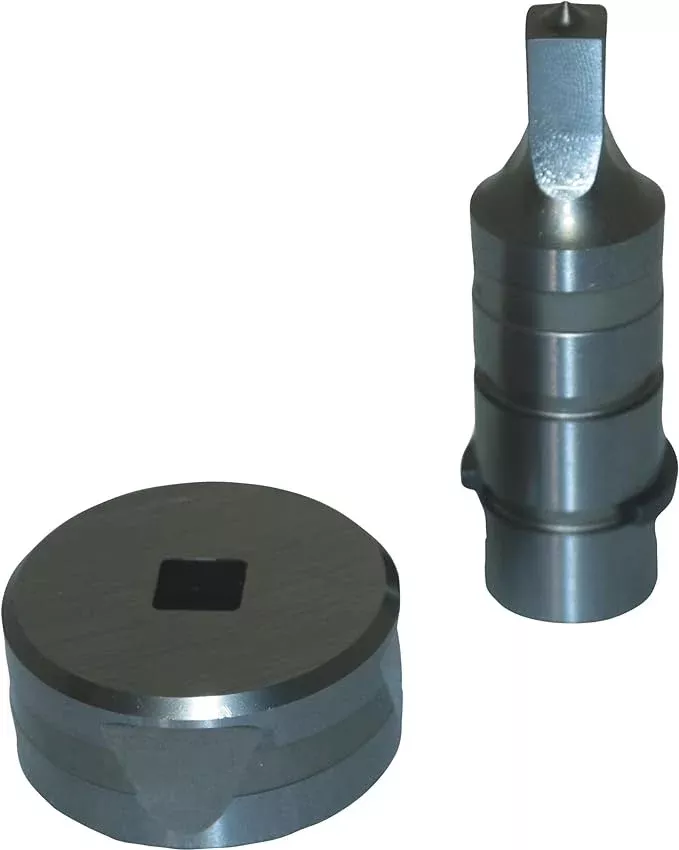

MetalPro 5/8 in. Square Punch and Die Set MP8062

METALpro 5/8 in. Square Punch and Die Set MP8062

This square punch and die set is designed for METALpro Ironworkers. Each set comes with one upper punch and one lower die. The hole size is based on the upper punch. All sets come with our standard 2″ lower die and 1/32″ clearance from punch to the die. Hole punch size must be equal to or greater than material thickness for best results.

*WE RECOMMEND THE PUNCH AND DIE SET THAT YOU ARE USING TO BE 1/32″ LARGER THAN YOUR BOLT SIZE (EX. 5/16″ bolt would need a 11/32″ round punch and die set)

*RATED FOR USE IN MILD STEEL

Specifications:

• Country of Origin — USA
• Compatibility — Fits all METALpro Ironworkers
• Shape — Square
• Die Size — 5/8″
• Shipping Dimensions — 9″ x 4″ x 2″
• Weight — 2 lbs

Square Punch Tonnage Chart
