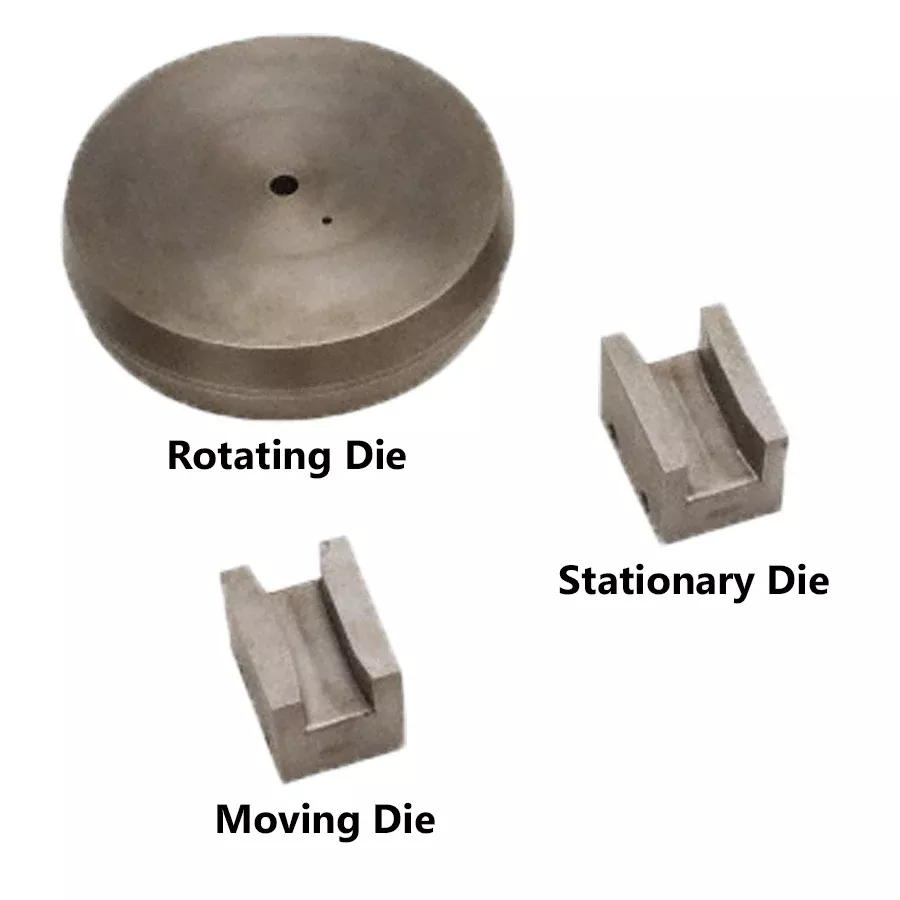

Create distinct, angular designs with the MP95S-012 1/2″ Square Tube Die Set. Designed for the MetalPro MP9500, this tooling set allows for the bending of 1/2-inch square tubing commonly used in furniture design, decorative ironwork, and light framing.
Bending square tubing presents unique challenges, specifically the tendency for the tube to bulge or crush. This MetalPro die set utilizes a specialized profile that supports the sides of the tube during the bend, maintaining the square profile. Rated for wall thicknesses up to 0.120″, it is a robust solution for artistic and light industrial fabrication.
Features & Benefits
- Profile Preservation: Side-support geometry helps maintain the square shape.
- Decorative Utility: Ideal for custom furniture and ornamental metalwork.
- Carbon Steel Build: Machined from solid billet for maximum longevity.
- Max Wall Thickness: Rated for up to 0.120″ wall material.
Specifications
- Capacity: 1/2″ Square Tube
- Max Wall Thickness: 0.120″
- Compatible Machine: MetalPro MP9500
