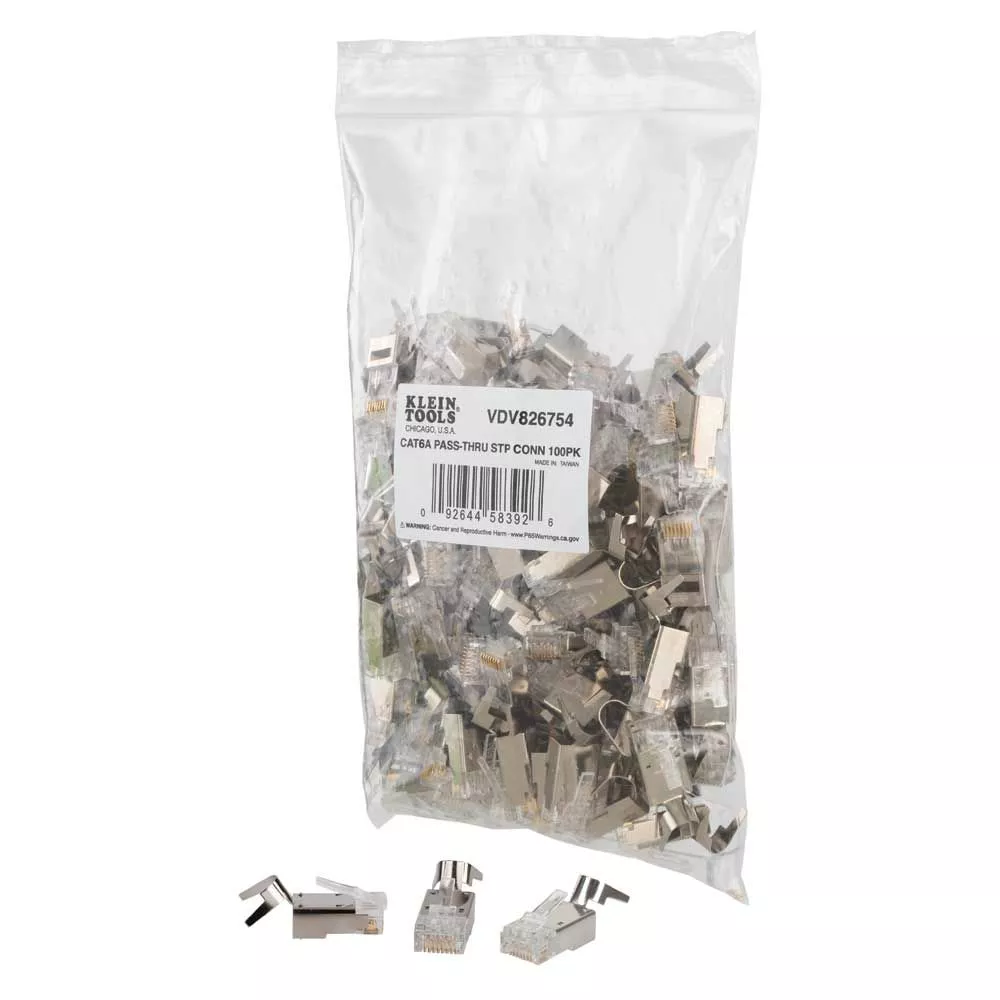

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. CAT6A shielded cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.
For CAT6A shielded cable and larger diameter/thicker jacket CAT6 cable
CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
Requires pass through type crimping tool (Cat. No. VDV226-110 recommended)
8 position, 8 contact pass through type data plugs for solid or stranded wire
Category 6A performance per TIA/EIA-568-B.2
100-Pack
50 µ-inch gold plating on all contact surfaces
Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.1 mm)
Specifications
Brand Name
Klein Tools
Sub Brand
Pass-Thru™
Item Name
Modular Data Plug
Type
Modular
Cable Type
Category 6A
Number of Positions
8
Termination Style
RJ-45
Color
Clear
Number of Contacts
8
Material
PVC
Finish
Gold-Plated
Dimensions
0.8 in L x 0.6 in W x 0.4 in H
Standards
PoE+, TIA/EIA-568-B.2
Application
Data
UPC
092644583926
