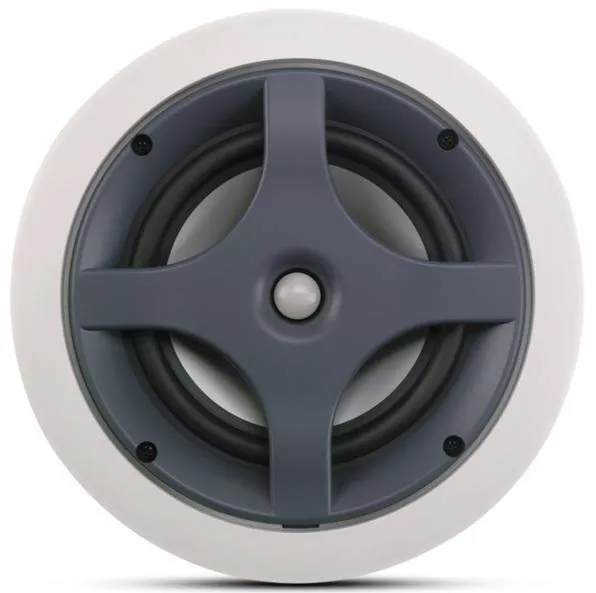

The ERS series reflects a pinnacle of achievement in built-in speakers. These in-ceiling and in-wall speakers incorporate Infinity’s patented CMMD technology for sound that’s absolutely clear and accurate, plus advanced waveguide design for even sound distribution. You’ll love what you hear. CMMD® – Ceramic Metal Matrix Diaphragms sandwich an aluminium driver between ceramic layers, the ultimate construction for accuracy. Ultra rigidity means no unwanted coloration, while light weight cones pick up subtle detail.
Specifications
| Brand Name | Infinity | Item Name | Loudspeaker |
| Type | 2-Way | Frequency Response | 45 Hz – 22 kHz at (+/-3 dB), 29 Hz at (-10 dB) |
| Dimensions | 10-7/8 in dia | Series/Model | ERS |
| Frequency Rating | 2300 Hz | Power Consumption | 10 – 135 W |
| Impedance | 8 O | Sensitivity | 89 dB |
| Hole Cutout Size | 9-1/2 in dia | Mounting | In-Wall |
