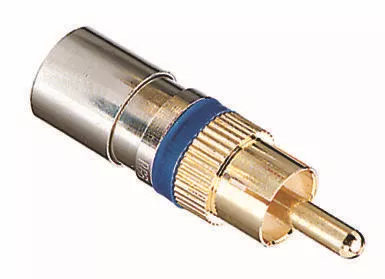

OmniCONN™ RCA compression connectors install easily onto standard RG 6 cable. Constructed of nickel plated brass and gold plated head. 75 ohm nominal impedance. Bandwidth up to 3 GHZ.
Accepts RG-6 Plenum coax cables
Center conductor range: All
Dielectric diameter range: .175” – .183”
Outer jacket diameter range: .267” – .305”
Specifications
Brand Name
Ideal
Sub Brand
OmniCONN™
Item Name
RCA Connector
Type
Straight
Cable Type
RG6 Coaxial, RG59
Connection Type
Compression
Series
TLC™
Impedance
75 O
Frequency Rating
3 GHz
Material
Nickel Plated Brass
For Use With
30-603 and 30-793 OmniSEAL™ Compression Tools
Standards
RoHS Compliant
Application
Termination of an RCA Style connection , compression style RG6
UPC
783250895809
Packages
