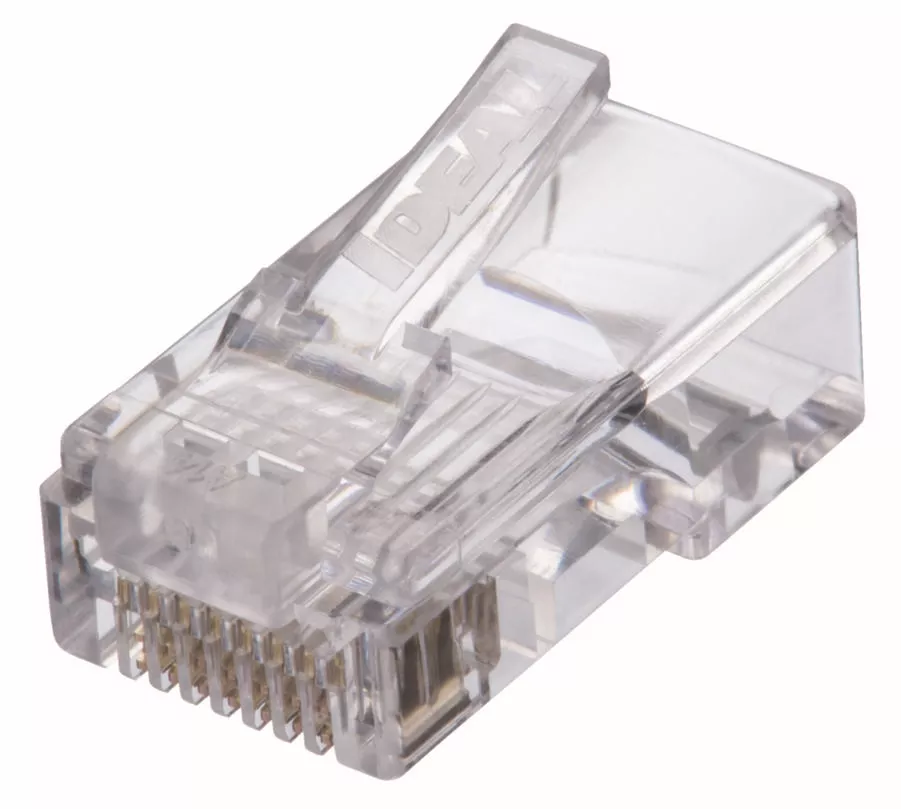

Cat 5e Feed Thru Mod Plugs 100/pk. 3 pin IDEC contact, 50 micron gold plated over 150 micron nickel. Secured in place – no loose pins in the package. Feed-thru mod plugs simplify twisted pair assembly process. Verify conductor order before crimping. Co nductors trimmed to the correct length by the tool – no measuring. Single piece design. Eliminates wasted connectors due to incorrect assembly.
Verify conductors are in the correct order prior to crimping
Feed-Thru, single-piece design simplifies connector to cable assembly for faster, simpler installation
Designed for best performance when used with the IDEAL FT-45™ Crimp Tool (30-495)
8 position, 8 contact RJ-45 modular plug
50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
Consistent connections with fewer errors
Specifications
Brand Name
Ideal
Item Name
Modular Plug
Type
RJ45 8(8), Feed-Through
Cable Type
Category 5E
Number of Positions
8
Termination Style
Crimp
Color
Transparent
Number of Contacts
8
Application
For Flat Cable, Litz Wire Conductor, Round Cable, Solid Core
UPC
783250853724
