Section Profiles For Cable Entry, SCE form tight seal around cables and fills gaps preventing dust from entering. This Section Profiles For Cable Entry, SCE, SCE800 item measures 30x635x20mm with a material of PVC.

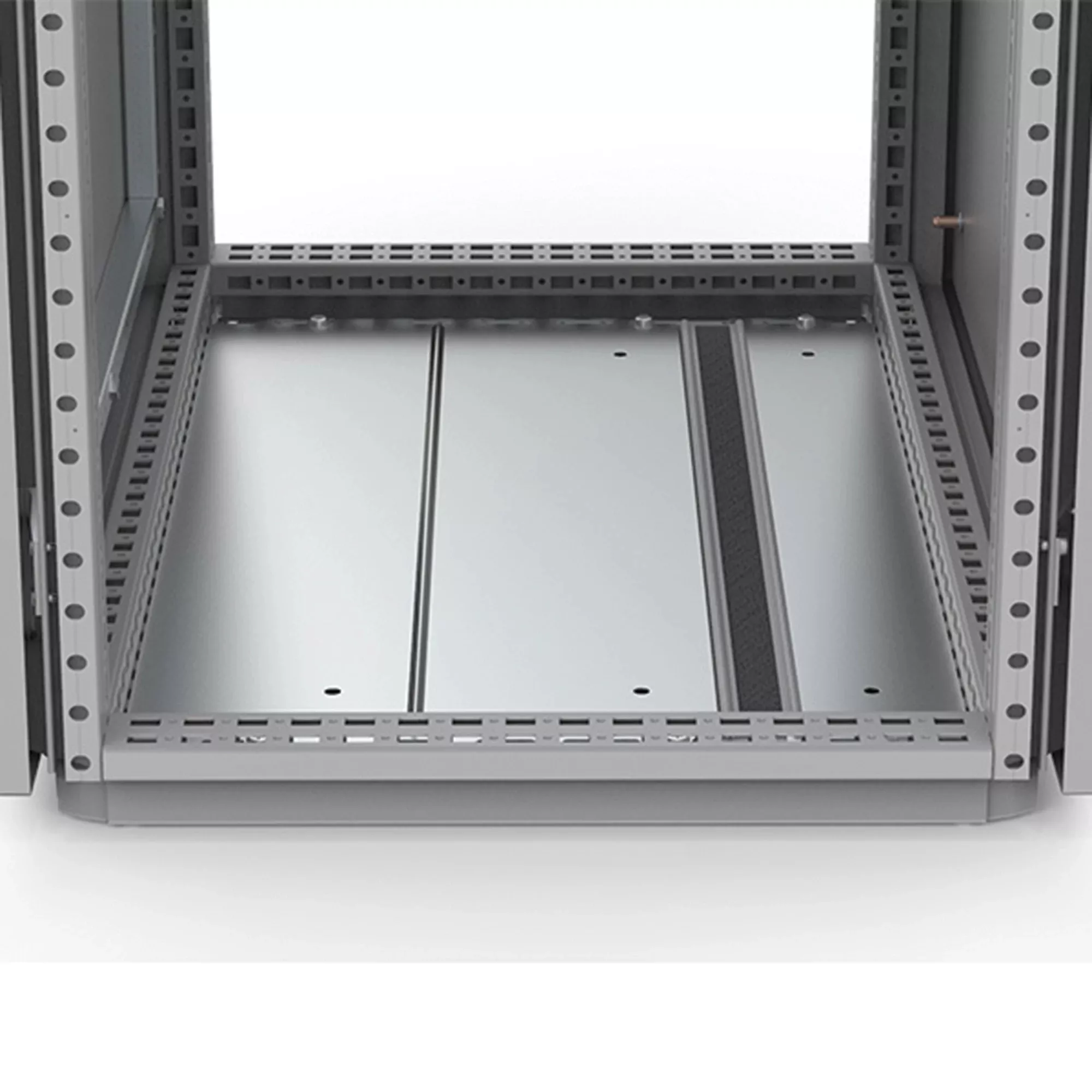

Description: For sealing the cable entry between gland plates. Forms a tight seal around cables and fills gaps to prevent dust from entering. The foam is pre-fitted in the section profile that can be easily mounted in the bottom plates thanks to its click
Material: Extruded PVC section profile. Gasket: adhesive foam with cross-section of 30 x 25 mm.
Pack quantity: 1 set consisting of 2 click-in section profiles with foam rubber. SCE-R variant includes an extra bottom plate.
Benefit: the enclosure’s protection degree is maintained avoiding the need to use cable glands
Benefit: the gasket increases the customers flexibility when installing cables, as the cable diameter does not necessarily need to be identified in advance
Benefit: the installation time is reduced as the gaskets are premounted onto the profiles
Specifications
Brand Name
nVent Hoffman
Type
IEC Enclosure Accessories
Size
1.19 x 25 x 0.78 inch
Material
PVC
Application
Factory Automation and Process Control; Controls and Drives
UPC
783510527785
Packages
