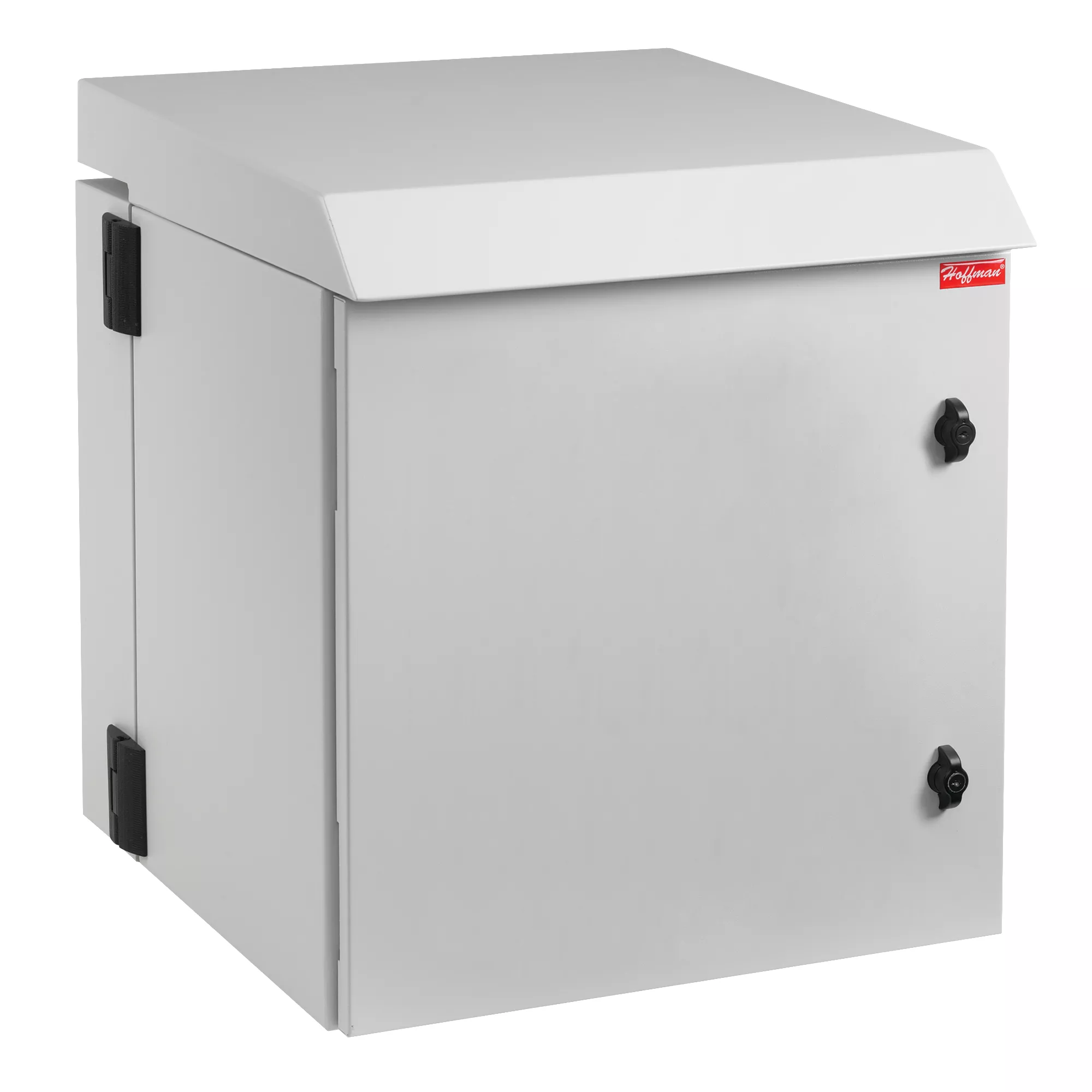

ProTek Double-Hinged Fan Packages protect wall-mounted equipment in various environments. This ProTek Double-Hinge Fan Package Window Type 1, PTHW482424GF item measures 48.54×23.62×24.02in. with a material of Steel color Lt Gray.
Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
Solid door provides complete physical and visual protection
Integral top solar/drip shield
Two thermostatically controlled, long-life, high-performance fans mounted into top
Window door, made of .25-inch scratch-resistant safety glass and mechanically fastened, provides visual monitoring of internal equipment while maintaining equipment protection
All seams are fully welded and ground smooth
Perforated, vented base with internal, expanded metal, serviceable filter
Door, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
Key-locking wing knob provides access control to the cabinet; two keys are included with each cabinet
Specifications
Brand Name
nVent Hoffman
Sub Brand
ProTek
Type
Data Networking Wall Mounted Cabinets
Width
23.62 in
Depth
24.02 in
Height
28.75 in
NEMA Rating
1 Indoor, electrical protection
Rack Units
26
Material
Steel
Finish
Lt Gray
Color
Lt Gray
Standards
UL 508A Listed, File Number E61997, cUL Listed per CSA C22.2 No. 94, File Number E61997, Solid Door: Type 3R, Window Door: Type 1, NEMA / EEMAC: Type 1 or 3R, IEC 60529, IP30 or IP 32
Application
Networking, Storage and Data Center; Controls and Drives
UPC
783510236557
