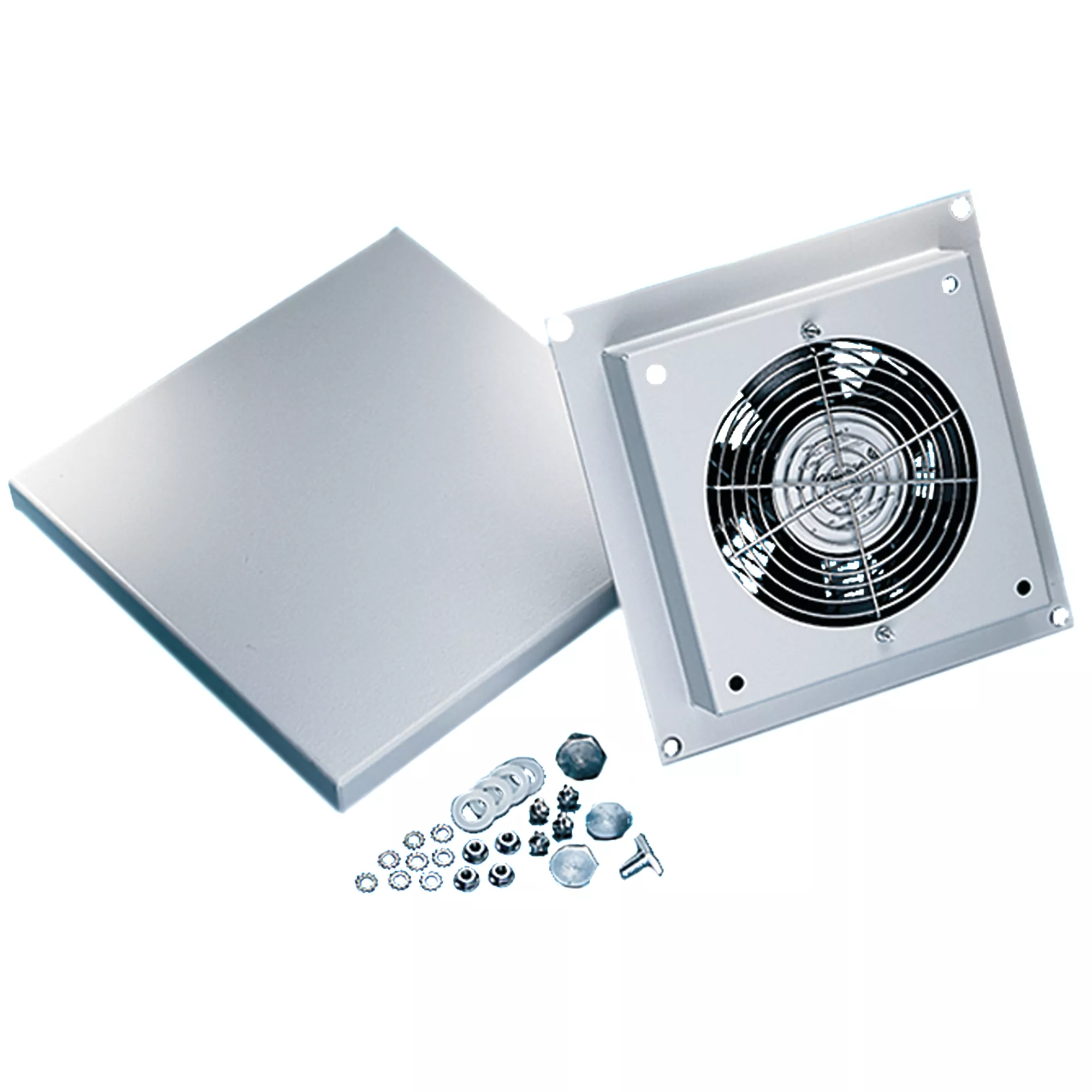

Pagoda Exhaust Vents can be field-installed on any ProLine or ProLine G2 solid top to provide active enclosure cooling.
Axial fan and finger guard mounted in housing
Drip-protected, raised cover is removable from the inside of the enclosure
115V or 230V versions with lead wires
115V power cord option
Rated UL Type 1; installing this component on an enclosure brings the enclosure rating to UL Type 1
Includes gasket and mounting hardware
Includes gasket and mounting hardware
Specifications
Brand Name
nVent Hoffman
Sub Brand
ProLine
Type
Pagoda Exhaust Vents
Material
Steel
Standards
This component is rated UL Type 1. Installing this component on an enclosure brings the enclosure rating to UL Type 1.
Application
Controls and Drives; Power Distribution
UPC
783510241698
