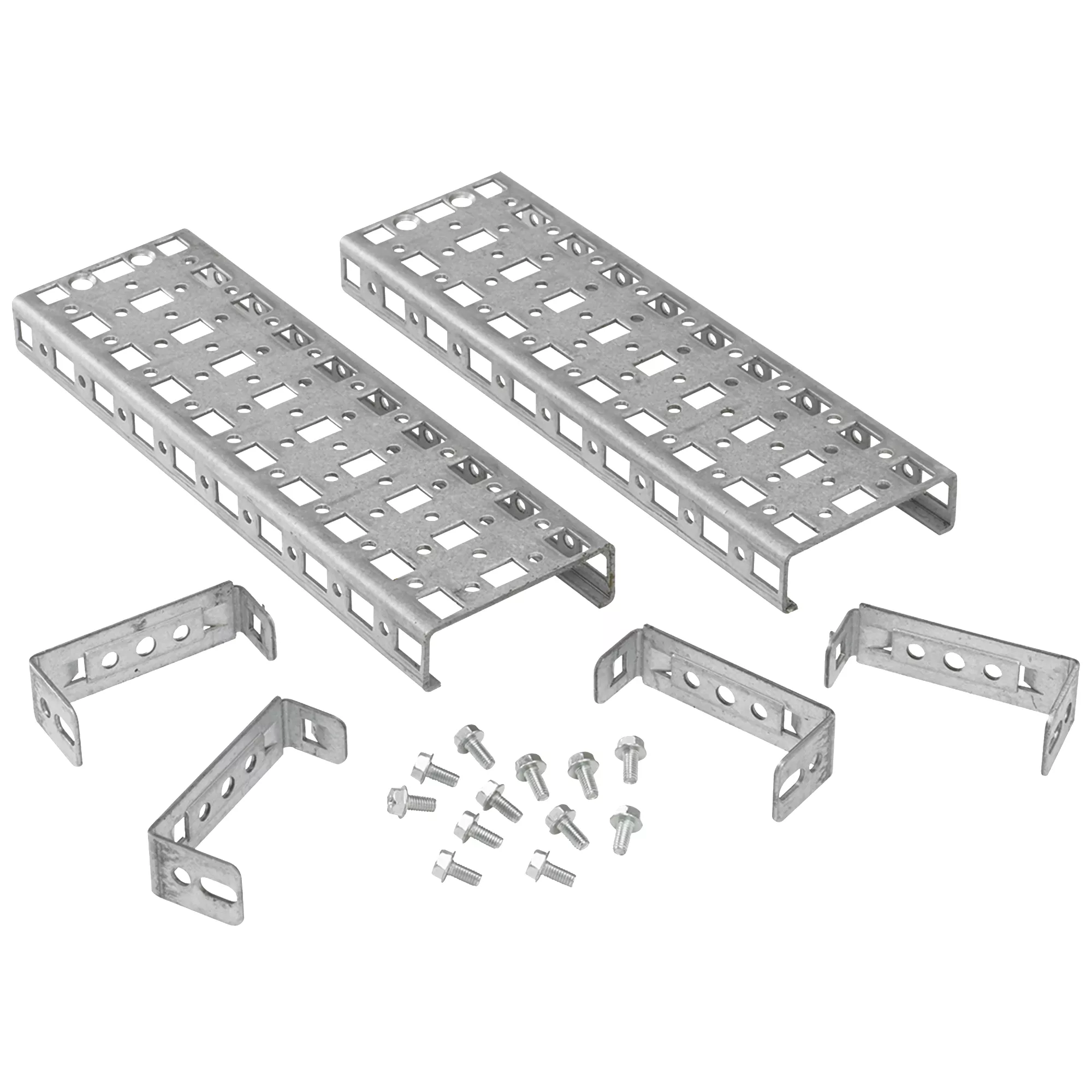

HOFFMAN PGH1S8 Grid strap for 800mm door steel 100lb

Grid strap, 14 gauge plated steel, 1 row grid strap furnished in pairs, Provided with specially designed rectangular holes to allow the use of cage nuts or front-loading cage nuts, Mounting holes are provided on 25mm centers, Can be mounted front-to-back horizontally, left-to-right horizontally, vertically between horizontally mounted grid straps.

Can be mounted vertically between horizontally mounted Grid Straps

Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame

Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame

When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)

Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
