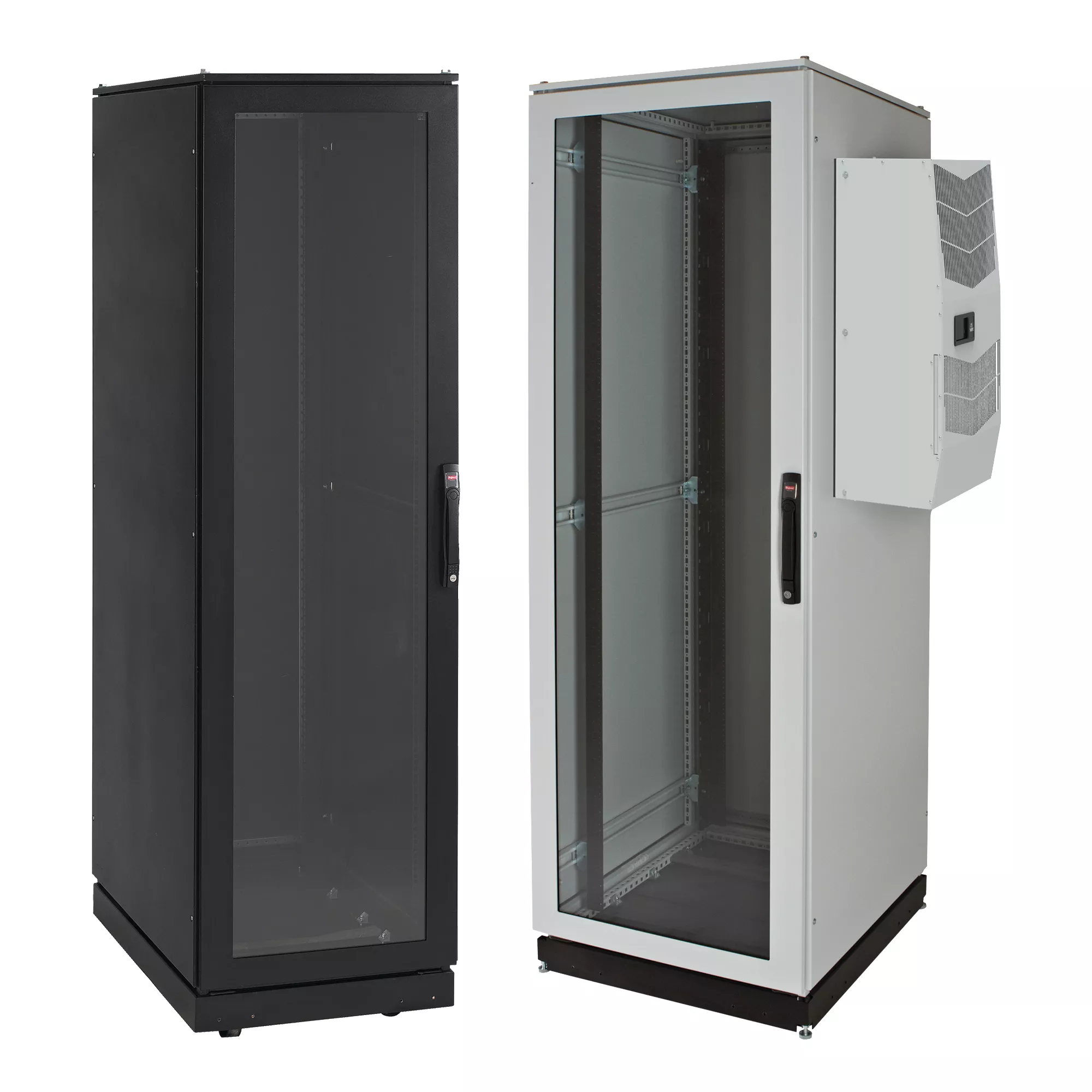

Proline Voice/Data cabinets are used for housing either A/V or server equipment in wet/hot environments. This ProLine V/D Server Cabinet with G28 Type 12, PDCP2078GAC item measures 2000x700x800mm with a material of Steel colored Gray.
Fully gasketed to keep contaminants away from equipment, reducing maintenance costs
Three-point locking handles on all doors provide easy but controlled access; two keys included
Rack angles are infinitely adjustable from front to rear for positioning flexibility
Mobile base provides easy placement of cabinet
Levelers and anti-tip bracket secure cabinet to the floor
AC package has cutout for easy in-the-field installation of SpectraCool G-Series Air Conditioner (shipped separately)
Mobile base includes casters, levelers and gland plate
Gland plate allows easy routing of cable
Front window door made of 16 or 14 gauge steel with safety glass window
Solid 16 or 14 gauge steel back door
Specifications
Brand Name
nVent Hoffman
Sub Brand
ProLine
Type
Data Networking Freestanding Cabinets
Width
27 67/77 in
Depth
31.46 in
Height
82.1 in
NEMA Rating
12 Indoor, dust-resistant
Rack Units
42
Material
Steel
Finish
Powder Coat
Color
Gray
Standards
EIA RS-310-D, UL 508A Listed, Type 12, File Number E61997, cUL Listed per CSA C22.2 No 94, Type 12, File Number E61997, NEMA/EEMAC, Type 12
Application
Networking, Storage and Data Center
UPC
783510153427
