The Mechanical Interlock solution and associated components have been redesigned to simplify installation and increase operator safety. The solution is based around a 1/2-in (~13 mm) Aluminum Hex Rod, which feeds through door actuators positioned only at the top of the enclosure(s). The door-mounted activator brackets engage with the actuator(s), also installed in series is a hook and capture system: the combination of actuator and hook increases safety by preventing system re-energization without closure of all secondary doors and the primary door.

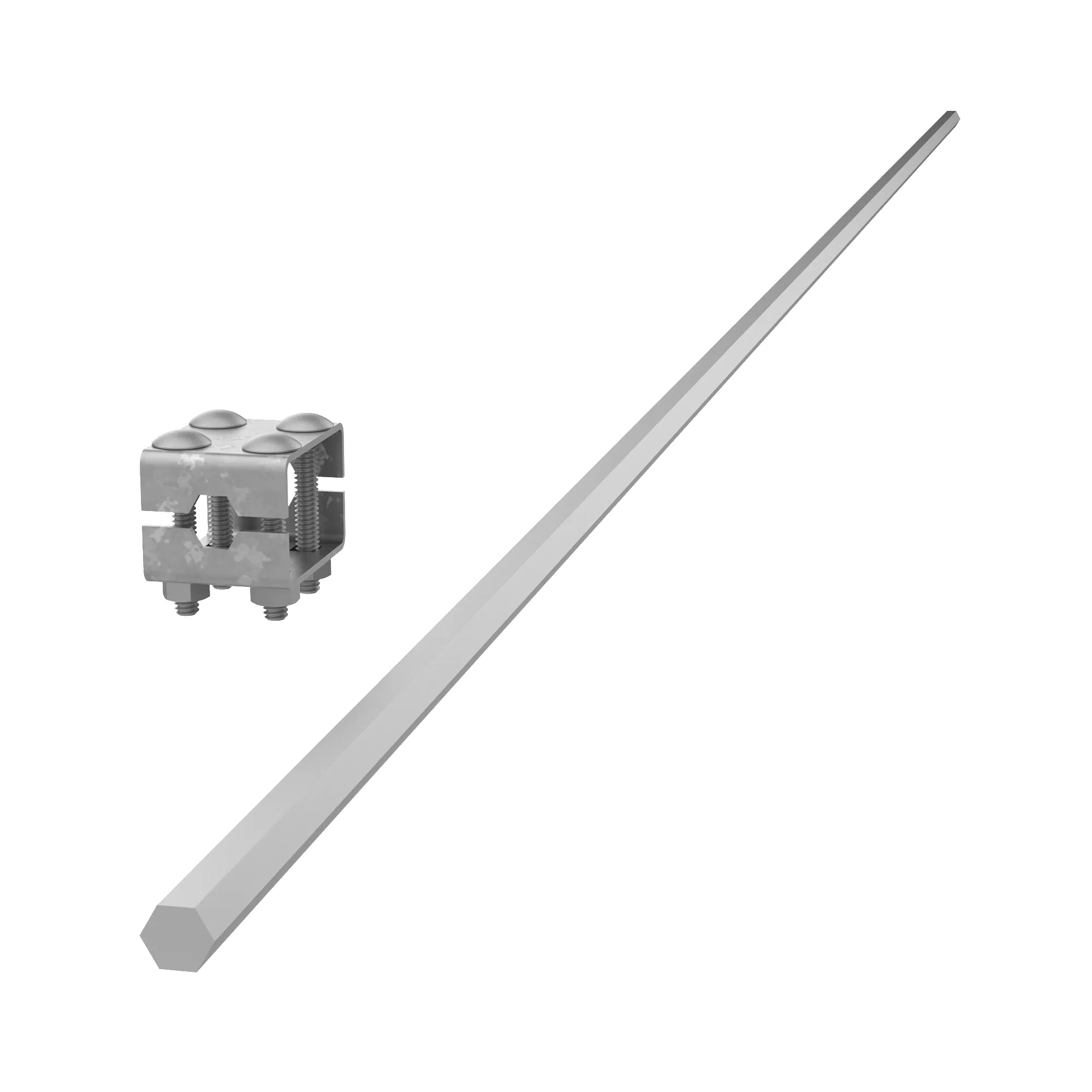

Solution based around a &189;-in (13 mm) Aluminum Hex Rod
Consult installation instructions to determine which components would be required to safely interlock a defined solution.
Specifications
Brand Name
nVent Hoffman
Material
Steel
Finish
Plated
UPC
783510363130
Packages
