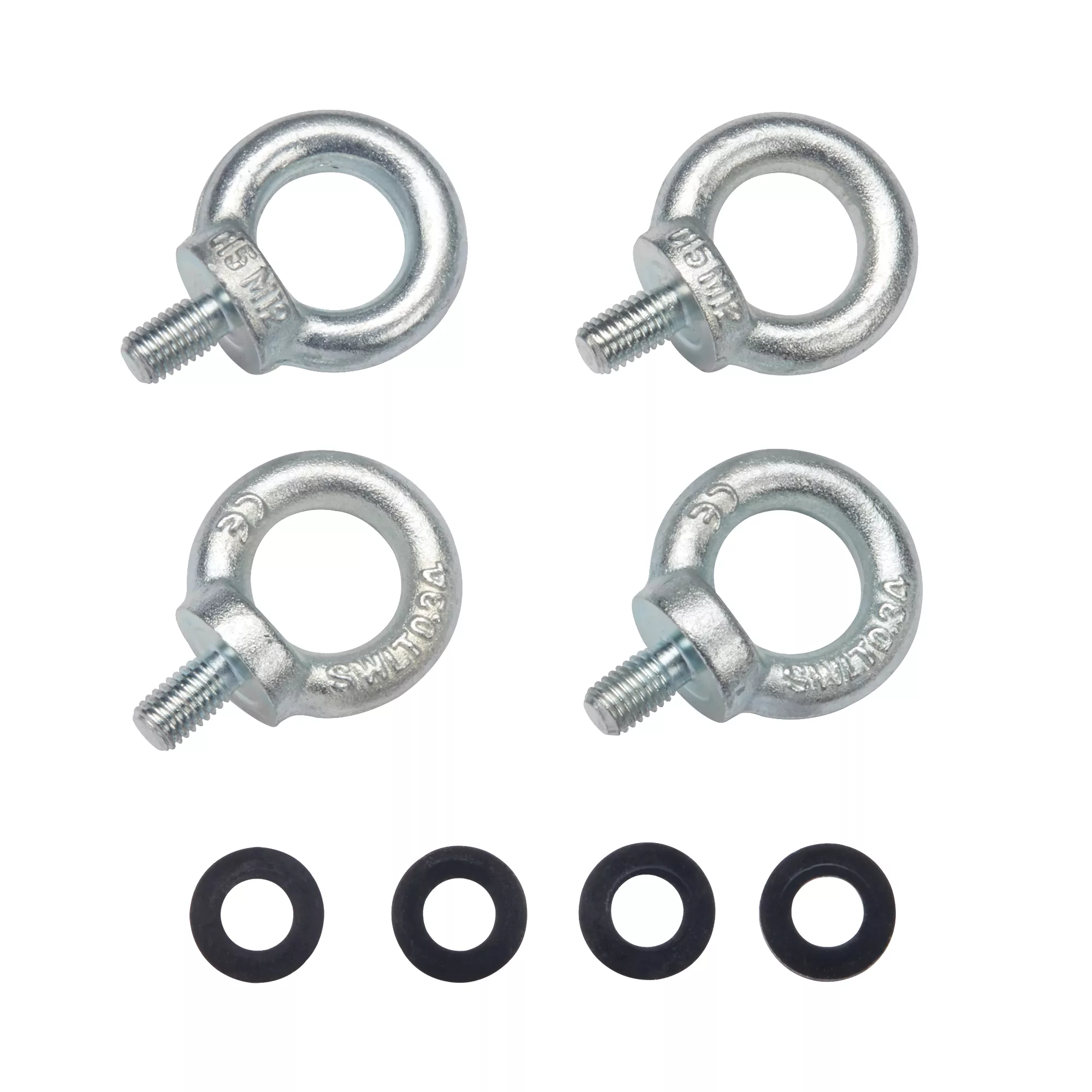

Lifting Eyes are used for lifting PRO LINE G2 modular frames and for fastening PRO LINE G2 top accessories to the frame. Designed for overhead lifting in conjunction with shackles and a spreader bar. Thread into corner blocks in a frame. Furnished in sets of four. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45 degrees. Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME , ISA, ASTM and other governing agencies.
Lifting eyes thread into corner blocks in a frame
Furnished in sets of four
Lifting Eyes are designed for overhead lifting in conjunction with shackles and a spreader bar. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45°. Use only slings and spre
Use of shackles instead of hooks is preferred
The angle between the top of the enclosure and the cable or chain must be at least 45 degrees
Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME, ISA, ASTM and other governing agencies
Specifications
Brand Name
nVent Hoffman
Sub Brand
ProLine G2
Item Name
Lifting Eye
Type
Conductive
Load Capacity
750 lb Straight Vertical Pull, 500 lb 45° Pull
Material
Steel
Finish
Plated
Series/Model
P40
Packaging Quantity
4/Set
For Use With
Lifting ProLine G2 Modular Frames and Fastening ProLine G2 Top accessories to the Frame
Includes
(4) M12 Hex Bolts For Installation
Standards
EU Certified, ARRA Compliant, Buy American Act Compliant
Application
Power Distribution; Controls and Drives
UPC
783510308766
