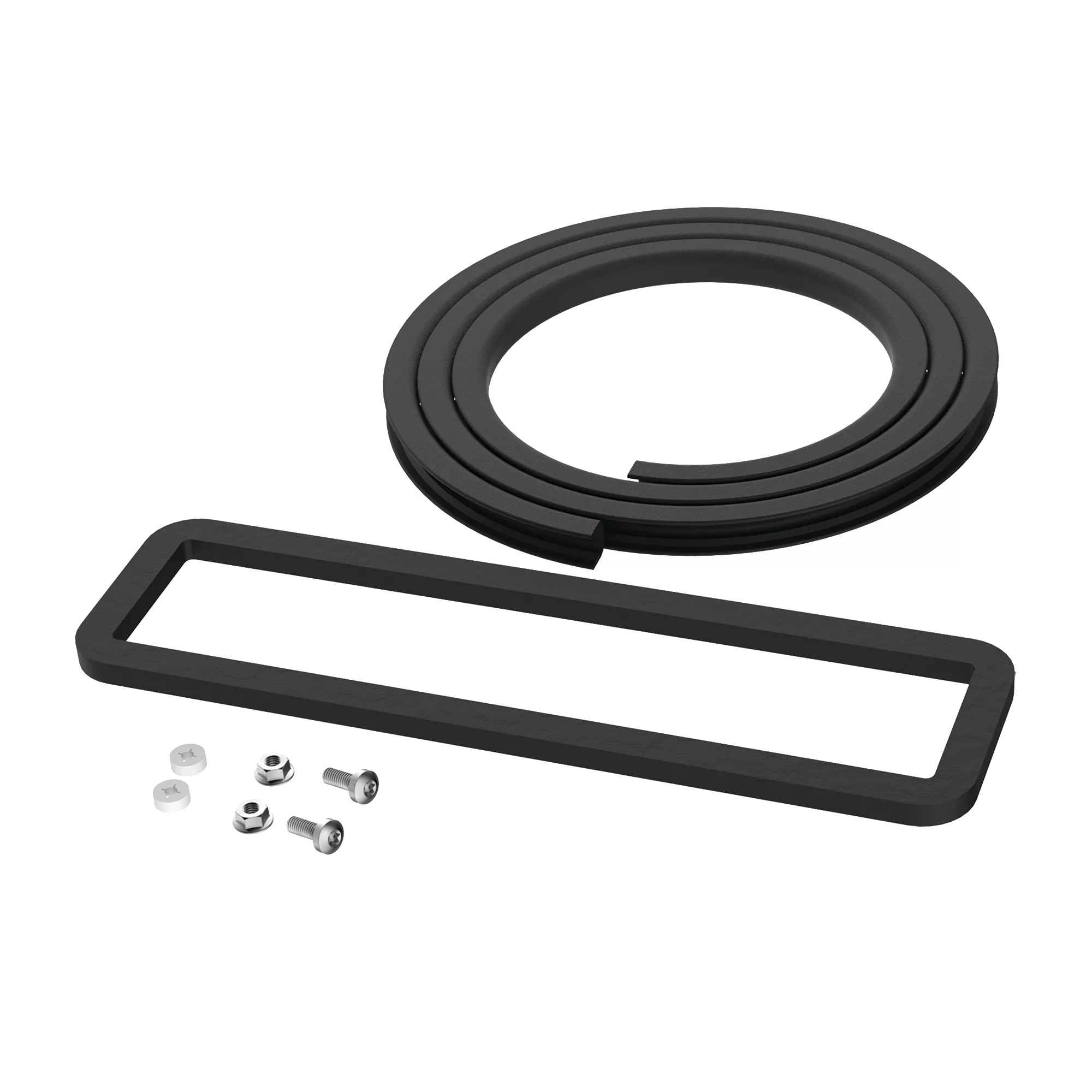

The Fully-Sealed Plinth Base Joining Kit provides a seal between the side gland plate openings on adjacent Fully-Sealed Plinth Bases in joined bay configurations. Used in combination with the G2 side-to- side joining kit. Maintains NEMA 12 rating between Fully-Sealed Plinth bases. Allows for sealed cable routing between joined cabinets. Includes nylon wire edge protector to prevent wear and abrasion of wires and cables. Gasket and installation hardware included.
Maintains NEMA 12 rating between Fully-Sealed Plinth bases
Allows for sealed cable routing between joined cabinets
Includes nylon wire edge protector to prevent wear and abrasion of wires and cables
Gasket and installation hardware included
Specifications
Brand Name
nVent Hoffman
Sub Brand
ProLine G2
Item Name
Plinth Base Joining Kit
Type
Fully Sealed
Material
Rubber
Color
Black
Finish
Matte
Includes
Nylon Wire Edge Protector, Gasket and Installation Hardware
Application
Controls and Drives; Power Distribution
UPC
783510308650
