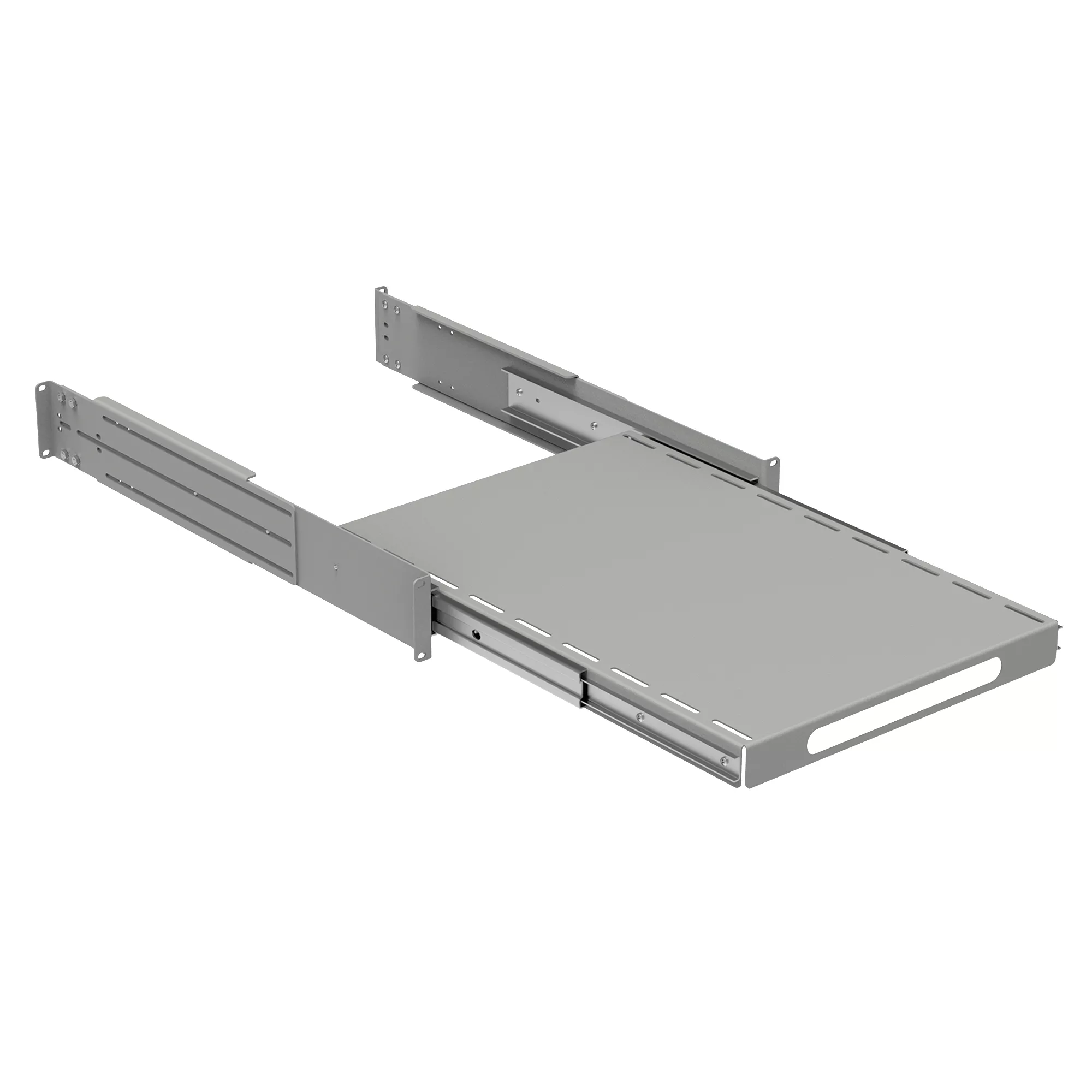

The Rack-Mount Sliding Shelf allows easy access to shelf-mounted devices. The shelf is 16-gauge steel with 12-gauge steel supports. The shelf mounts to the front surface of front and back rack angles. When mounted directly to a frame, load rating is 150 lb. (68 kg) with four rack angle mountings and 75 lb. (34 kg) with front rack angle mounting. Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps. Order these items separately.
Shelf is 16-gauge steel with 12-gauge steel supports
Mounts to the front surface of front and back rack angles
Load rating is 150 lb. (68 kg) with four rack angles mounted directly to frame verticals; load rating reduced to 75 lb. (34 kg) with front rack angle mounting only
Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps. Order these items separately
Specifications
Brand Name
Hoffman
Sub Brand
ProLine
Type
3-Row
Rack Units
2
Height
4.75 in
Width
20.00 in
Material
Mild Steel
Color
Light Gray
Finish
Powder Coat
Application
Controls and Drives
UPC
783510304355
