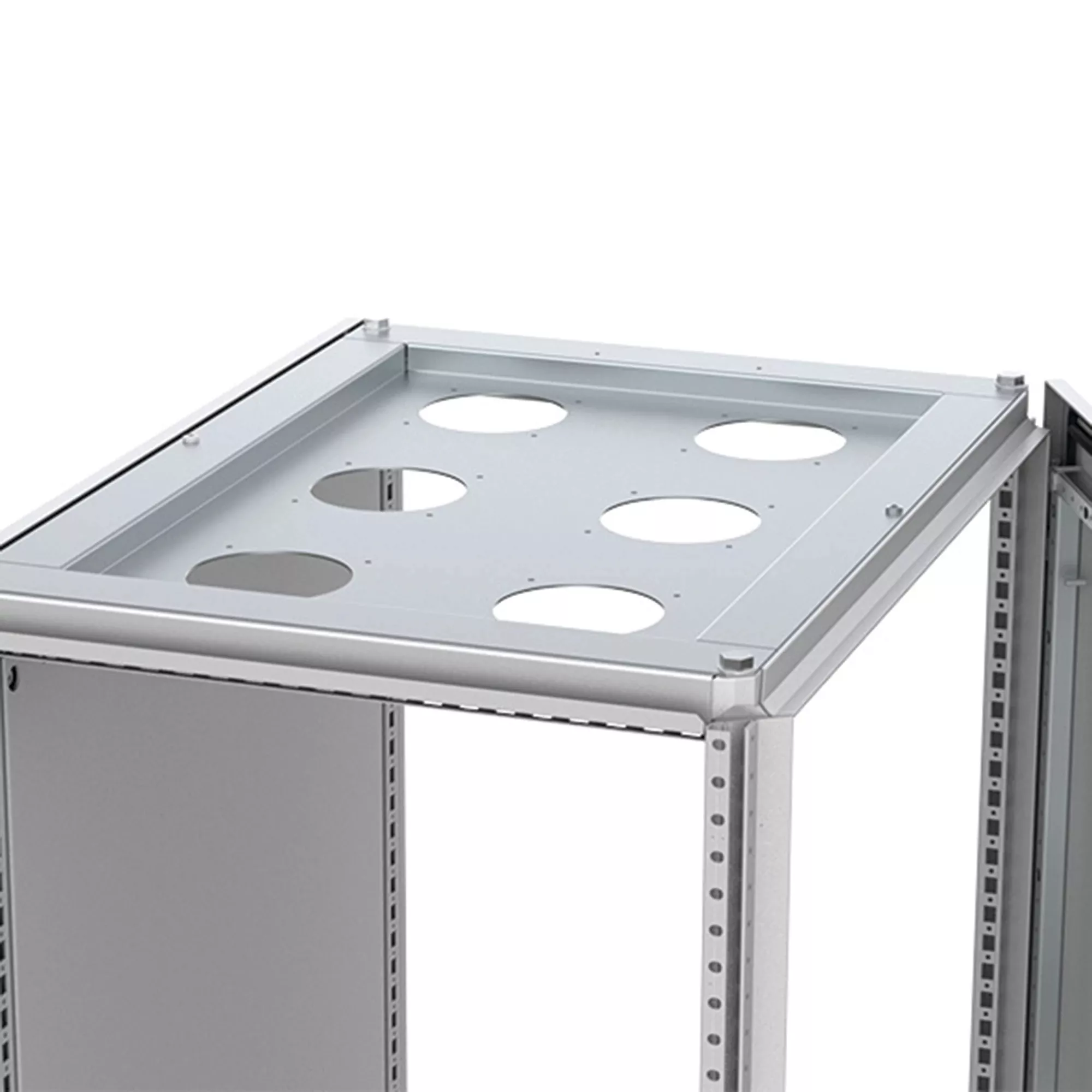

The fan roof plates are used to mount fans on the roof of an enclosure. This Fan Roof Plates, CFR, CFR0608 item measures 24x560x758mm with a material of Zinc Plated, Mild Steel.
Description: For mounting a combination of 6 fans DFN or closing plates DFC for unused holes in the top of the enclosure.
Material: 2 mm zinc plated steel.
Mounting requirements: Add Ventilation roof CVR. Use fan DFN. Unused holes should be closed with DFC.
Pack quantity: 1 piece with mounting accessories.
Benefit: The forced ventilation provides a high cooling capacity which is a good solution in environments when the ambient temperature is 10 degrees or more, under the enclosure’s desired internal temperature
Comment: The roof fan plate must be mounted in combination with the ventilation roof, CVR
Comment: It is recommended to also install exhaust filters in the bottom of the enclosure to let air circulate properly
Comment: The cut-outs must be covered by either ventilation fans, DFN, or cover plates, DFC, depending on the amount of cooling required
Specifications
Brand Name
nVent Hoffman
Type
IEC Enclosure Accessories
Length
24.00 in
Width
22.05 in
Height
0.94 in
Material
Steel
Application
Factory Automation and Process Control; Controls and Drives
UPC
783510458041
