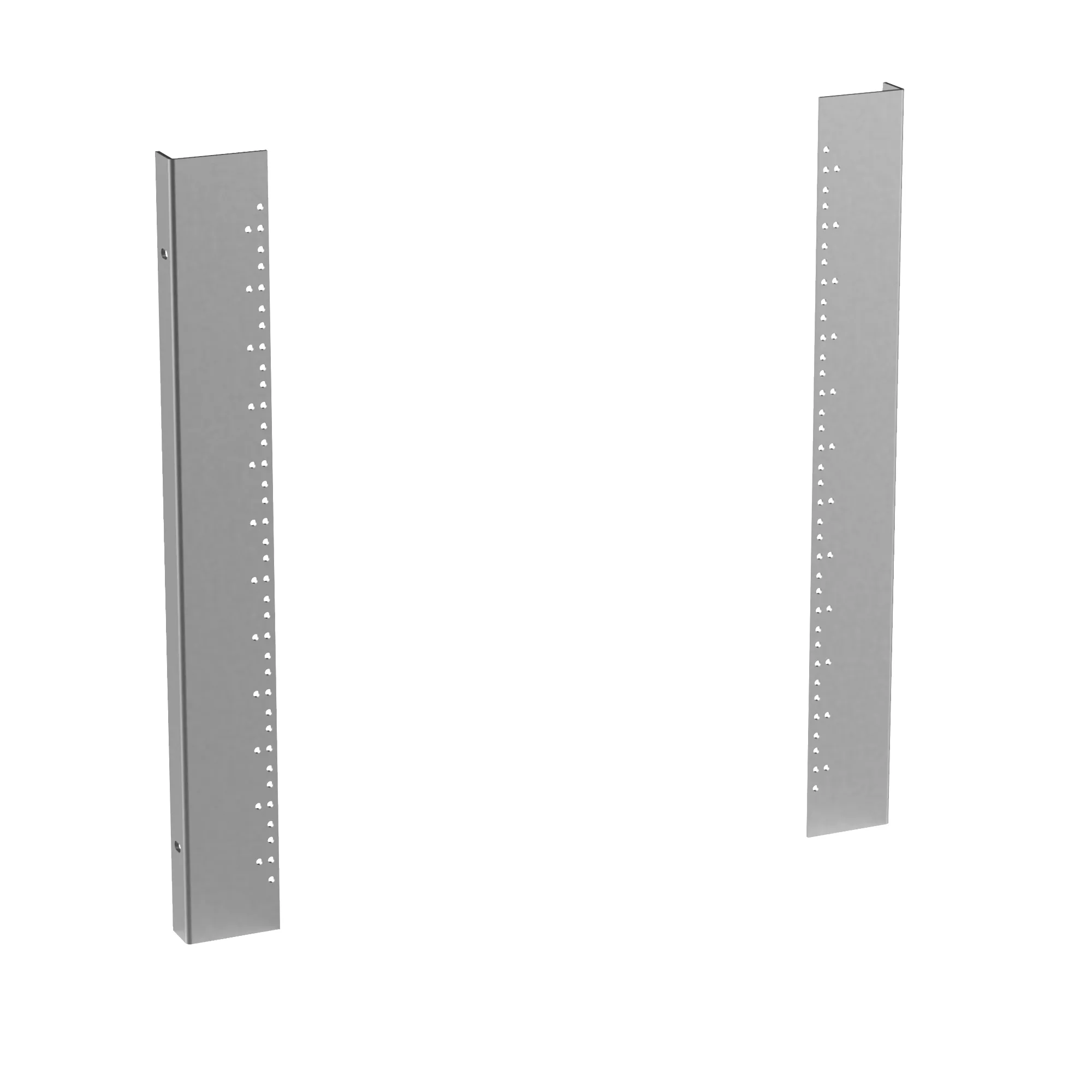

Rack mounting angles are designed for standard 24-in. (610-mm) wide one-door, Wall-Mount Type 4 and 12 enclosures. A pair of pre-cut rack mounting angles are available for mounting 19-in. (483-mm) rack-mounted equipment. To install, drill small holes in the sides of the enclosure and bolt angles in place.
Rack mounting angles have mounting holes tapped 10-32 thread and spaced per EIA 310-D standard
All mounting hardware and instructions are furnished
Stainless steel external screws and sealing washers are provided to maintain original enclosure standards rating after installation
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Type
Mounting Accessories
Length
25.70 in
Width
4.40 in
Height
3.20 in
Thickness
3.4 mm
Material
Steel
Finish
Zinc
Application
Controls and Drives; Power Distribution
UPC
783510216603
