Product Description

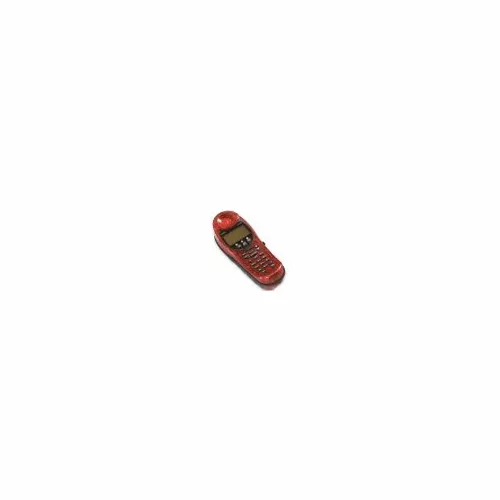

FLUKE/HARRIS DRACON TS1200 ADSL/POTS TEST SET 25800-019 NEWThe recent growth of ADSL services within the telecommunications industry hasproduced a need for test equipment that can handle the trouble tickets on bothPOTS and ADSL lines. The TS1200 ADSL/POTS test set from FLUKE/HARRIS DRACON does just that.It offers the very best in DataSafe™ POTS testing, combined with the ability to testand troubleshoot ADSL lines – all in a truly rugged case. The TS1200 test setallows technicians to test ADSL while talking on the POTS frequencies of a line. Italso allows off-hook testing of POTS lines without disrupting data services. As theresult, trouble tickets are cleared rather than created. Plus, because the TS1200 TestSet can test both POTS and ADSL, it reduces the need for separate handheld testers.Easy-to-use menu screens, including a “Home” button that allows access to allmajor testing modes and configurations. This makes the TS1200 test set the perfecttester for the inexperienced technician. Plus, you can validate service activation,isolate failures between the customer premises and the service provider, andmeasure throughput, line capacity, and other parameters – all in one test. Thebacklit LCD screen displays 8 lines of text and can plot a bits-per-bin graph of testresults. Plus you can save up to five results to download and print from a PC.You can do an “auto” test, which takes a snapshot of the ADSL line, or you cando a “manual” test, which allows you to monitor line conditions for up to 90minutes. On-screen icons show volume level, battery and charging levels, polarity,and Speaker or Mute button activity. An Alarm Display shows loss of signal,frame, power, or margin at the near or far end of the line.With high-voltage protection, DropSafe™ ruggedness, RainSafe™usability, and all the standard features of FLUKE/HARRIS DRACON butt-in testsets – like PBX Pause, Speed Dial, Last Number Redial, andTone and Pulse dialing – the TS1200 test set is the essentialpiece of testing equipment for the telephone tech in theworld of ADSL. The TS1200 also can be outfitted with aload coil detector. Which is perfect for central officeinstallation and verification.FeaturesAbility to simultaneously test ADSL services and verify POTS linesDataSafe Technology allows for off-hook POTS verification without disrupting data servicesDropSafe reliabilitywithstands 12 foot drop testRainSafe protection against unfavorable field conditionsSave/Download/Print5 resultsADSL verification functions including:. Attainable bit rate . Channel bit rate . Maximum line capacity . Attenuation . Output power . Noise Margin Two ways to test ADSL: an automatic snapshot test for quick results, and a manual monitor test for up to 90 minutes of continuous testing Data Detection, Data Lockout, and Data Lockout Override in Talk modeDigital readout menu screens, including a Home Button that allows access to all major testing modes and configuration functions from one screen High voltage protectionSpeed Dial buttonstorage of 10 entries of 23 digits eachLast Number RedialField upgradable firmware/softwareBuilt-in speakerphone for hands-free use 4 field replaceable AA Alkaline batteries or 4 rechargeable NiCd batteriesAC adapter and 12V DC adapter for recharging NiCd batteriesModem Chip Set Alcatel 20140 DMT Chipset Supports ANSI T1.423 Issue 2, ITU G.DMT, and G.LITE standardsAble to synchronize with any Alcatelcompatible ADSL DSLAMRain and moisture resistantDesigned to exceed 12 foot drop testBattery life: NiCd 8 to 10 hours, fully charged; Alkaline (AA) 10 to 12 hours, Charge time 4 to 5 hoursData Detection and Lockout Capability Twisted pair data services including: T1, E1, ISDN, PRI, ISDN BRI, HDSL, SW56, ADSL, and SDSLlLength: 10 inches xWidth: 3-3/4 inches x Height: 4-1/4 inches, Weight: 2-1/2 lbsWarranty 18 months against hardware defectsPart Number Description25800-019 TS1200 ADSL/POTS Test Set Outside Plant without load coil 25800-119 TS1200 ADSL/POTS Test Set for Outside Plant with load coil 25800-124 TS1200 ADSL/POTS Central Office, includes CO combi cord
