Gedore 8563-30 Torque wrench DREMOMETER D set

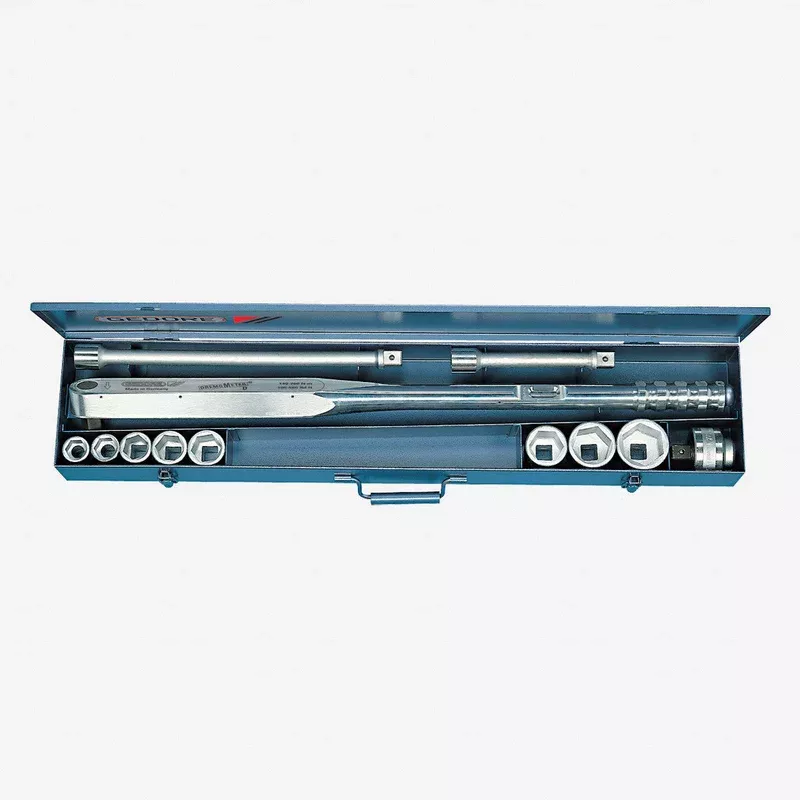

3/4″ square drive Dremometer: 140-760 Nm (100-560 ft-lbs)3/4″ square drive socket: 22mm3/4″ square drive socket: 24mm3/4″ square drive socket: 27mm3/4″ square drive socket: 30mm3/4″ square drive socket: 32mm3/4″ square drive socket: 36mm3/4″ square drive socket: 41mm3/4″ square drive socket: 46mm3/4″ square drive ratcheting attachment3/4″ square drive extension: 200mm (8″)3/4″ square drive extension: 400mm (16″)
Controlled screw tightening in the range 140-760 Nm / 100-560 ft-lbs.For use in almost all industrial manufacturing areas Features:Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.3/4″ square drive with pin-locking mechanism DIN 3120 – B 20, ISO 1174Automatic short-path actuation with tactile impulse and audible signalDual scale with a scale graduation of 10 Nm and 10 ft-lbs. Technical advantage/Function:Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendlyNo inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user’s working load.Extremely low wear attributable to reduced forces in a unique lever mechanismForged lever chain from our own quality forgeMaximum precision even when subjected to extreme continuous useLong life cycles and tool livesEasy operation – fast and safe torque tighteningEasy adjustment thanks to attractive adjusting button secured against loss at the end of the handleSingle-square drive
