Description:
- Hacksaw for pipes up to 24 in
- STS 325 R

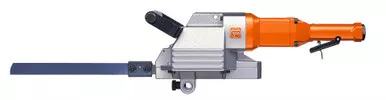

- Pneumatic hacksaw for pipes and profiled sections.
Benefits:
- Ideally suited for cutting pipes and profiles made of steel, cast iron, autoclaved aerated concrete, and plastics.
- Clamp and feed device available for profiles and pipes from 3-1/8 in [80 mm] to 24 in [400 mm].
- Adjustable clamping devices permit mitre cuts up to 45° as well.
- Clamp and feed device available.
- Adjustable clamping fixtures.
- * Chain extension available.
Technical Data:
- Operating pressure: 87 [6.0] psi[bar]
- Air consumption: 51.2 [1.45] cfm[m³/min]
- Power output: 1,100 W
- Strokes: 330 spm
- Stroke of blade: 2-1/4 [60] in[mm]
- Pipes up to : 17-1/4 [440]* in[mm]
- Profiles up to W x H: 11-1/2 [290]x 19-3/4 [500]in[mm]
- Weight: 15.87 [7.20] lbs[kg]
Includes:
- 2 saw blades (type 063)
- 1 wrench set
- 1 carrying handle
- 1 hose coupling
