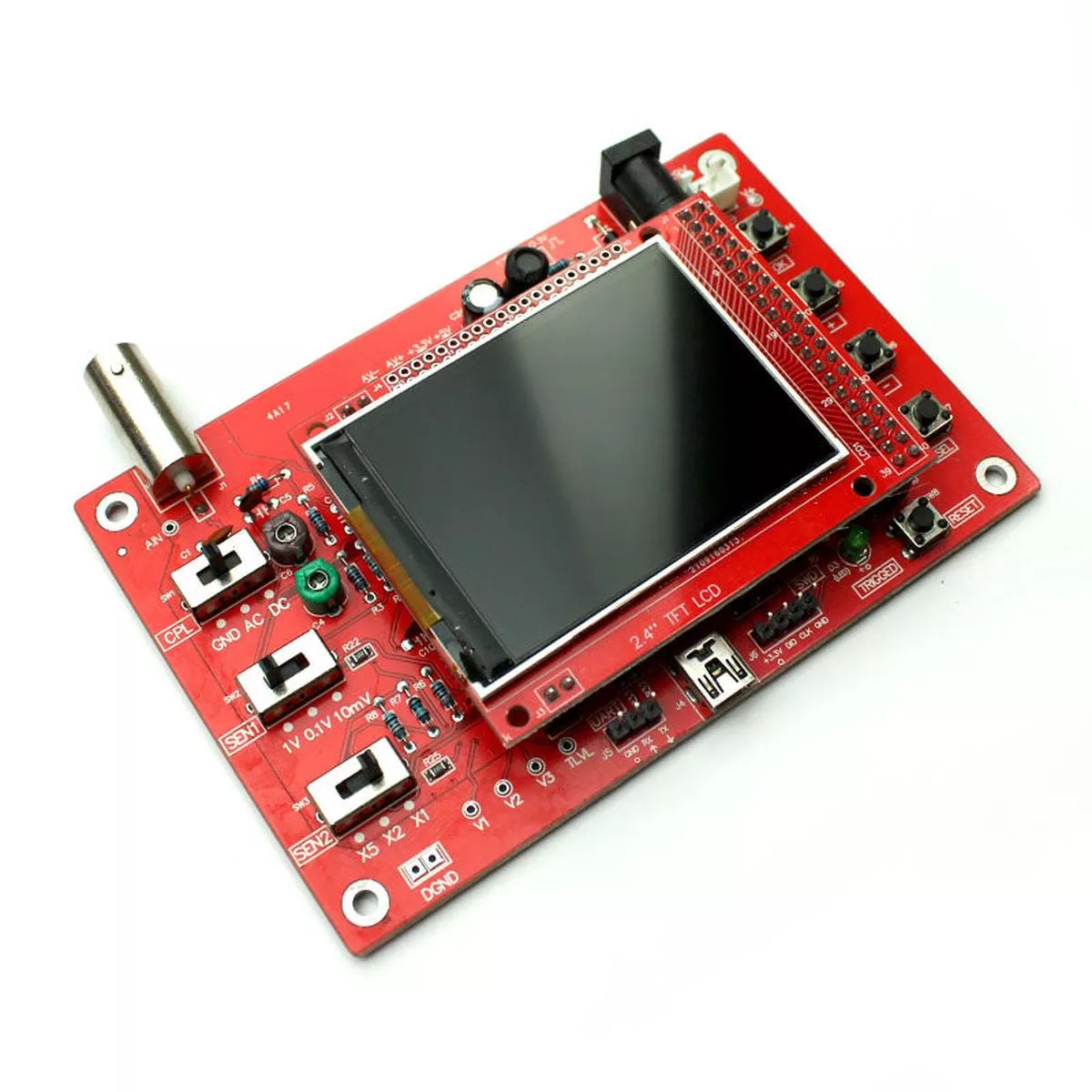

DSO138 Handheld Oscilloscope Kit with 2.4 Inch Display

Thisis readytouse handheldoscilloscope kit powered byARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch TFT display. The DSO138 oscilloscope kit can display frequency, period, pulse width, duty ratio, and max/min/avg/peak/virtual values.

Features:

• Observable previous trigger waveform (negative delay).
• Can freeze at any time waveform display (HOLD function).
• Comes 1Hz /3.3V square wave test signal source.
• With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
• Waveform storage function: will not lose the waveform after power off.
• Short-circuit and open-circuit detection: can help the user find out the soldering error.
• TFT controller recognition function.

Specifications:

• Maximum Real-time Sampling Rate: 1Msps
• Accuracy: 12Bit
• Sampling Buffer Depth: 1024 bytes
• Analog Bandwidth: 0-200KHz
• Vertical Sensitivity: 10mV / Div – 5V / Div (1-2-5 progressive manner)
• Input Impedance: 1M
• Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
• Coupling Modes: DC / AC / GND
• The Horizontal Time Base Range: 10s / Div – 50s / Div (1-2-5 progressive manner)
• Supply Voltage: DC 9V
• PCB Size: 117 * 76mm / 4.6 * 3in
• Screen Size: 52 * 40mm / 2 * 1.57in
• Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
• Package Weight: 119g / 4.21oz

Package List:1 x DSO138 DIY Digital Oscilloscope Kit1 x Probe3 x User Manual (English)
