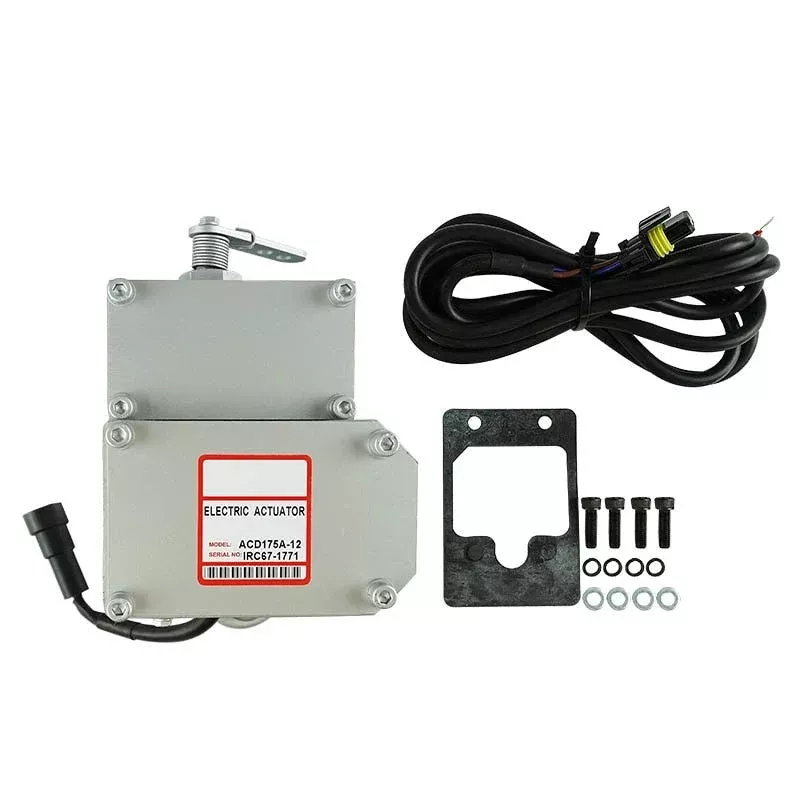

Generator Actuator ACD175
The 175 SERIES electric actuator is designed to mount directly on”P” size fuel injection pump, with a right hand, rack, in palceof the mechanical governor.
When the 175 actuator is installed on the fuel pump, an optimum performance, long life fuel control system results.
An external fuel shut off lever is provided to manually override the actuator’s control. Also providedis an adjustable internal maximum fuel limit.
| Specification | ||
| Force: | 6.2 lb. (27.5N) | |
| Operating Stroke: | 0.80 in. (21 mm) | |
| Response Time (10-90%, 2-19 mm): | 35 msec. | |
| ELECTRICAL POWER INPUT | ||
| Operating Voltage: | 12 or 24V DC | |
| Nominal Operating Current: | 12V DC version: | 4.0A |
| 24V DC version: | 2.0A | |
| Maximum Current: | 12V DC version: | 5.8A |
| 24V DC version: | 3.1A | |
| ENVIRONMENTAL | ||
| Operating Temperature: | -40 to +95 (-40 to +200 ) | |
| Relative Humidity: | up to 100% | |
| Vibration: | 20g, 20-500 Hz | |
| Shock: | 20g @ 11 msec. | |
| PHYSICAL | ||
| Weight: | 2.2kg |
