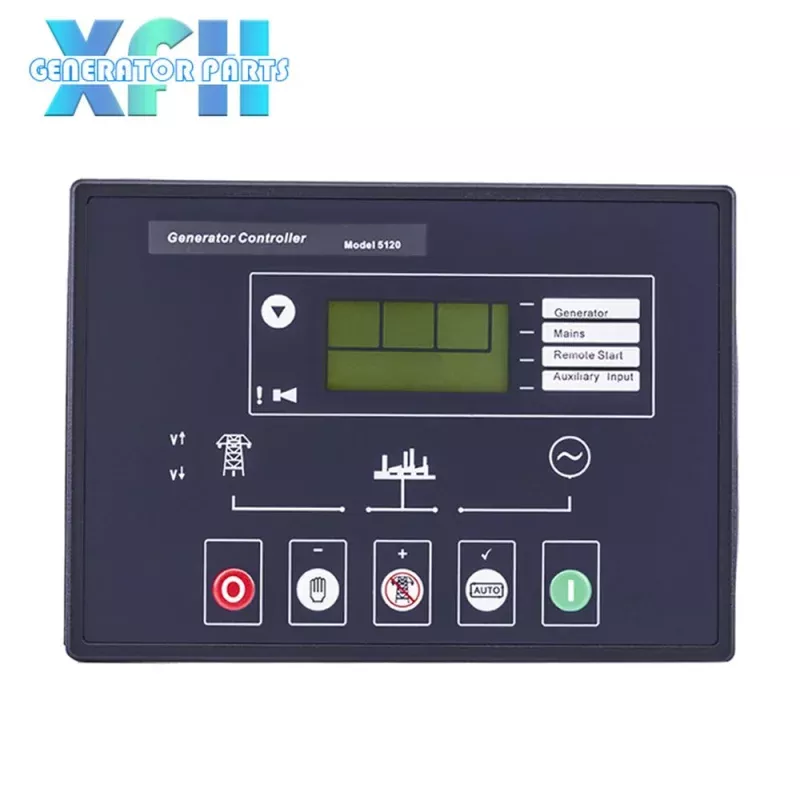

DSE 5120Generator Controller is an Automatic Start Control Module designed to automatically start and stop diesel and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features.
DSE5120 Generator Controller has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.
Packing Size: 290mm*180mm*65mm
Shipping Weight: 1KG
Application:>10 KW gas & diesel generator started with battery
FEATURES of DSE 5120 Automatic Generator Controller
Automatic start
Automatic load transfer
Configurable inputs
Configurable outputs
Configurable alarms & timers
Digital inputs
Analogue inputs
Back-lit character LCD display
Engine protection
Front panel mounting
Icon based fault diagnostics
PC configurable
Front panel programming
Remote monitoring
LCD alarm indication
LED alarm indication
BENEFITS Generator Automatic Controller DSE5120
In-built engine diagnostics removes the requirement for service equipment
License free PC software
Modules help to improve the life cycle of engine starter motors
On-site module configuration
User-friendly set-up and button Layout
OPERATION
The DSE5120 is operated using the front STOP, AUTO and MANUAL push buttons. An additional
push button on both modules allows the user to scroll through the LCD instrumentation display.
CONFIGURATION of DSE 5120 Generator Controller
The module DSE5120 can be configured using the front panel buttons or the DSE810 interface and PC software.
INPUTS & OUTPUTS
Analogue inputs are provided for oil pressure and engine temperature. These connect to conventional engine mounted resistive sender units to provide accurate monitoring and protection facilities. The modules can also be configured to interface with digital switch type inputs for low oil pressure and high engine temperature shutdowns.
Relay outputs are provided for fuel solenoid output, start output and three additional configurable outputs. A range of different functions, conditions or alarms can be selected for the three configurable relay outputs. These outputs are fed from the permanent plant provide.
INSTRUMENTATION
The DSE 5120 Generator Controller provide advanced metering facilities, displaying the information on the LCD display. The information can be accessed using the display scroll push buttons located next to the LCD display.
Generator Volts L1-N, L2-N, L3-N
Generator Volts L1-L2, L2-L3, L3-L1
Generator Amps L1,L2, L3
Engine Speed RPM
Generator Frequency Hz
Engine Oil Pressure (PSI & Bar)
Engine Temperature (&)
Plant Battery Volts
Engine Run Hours
