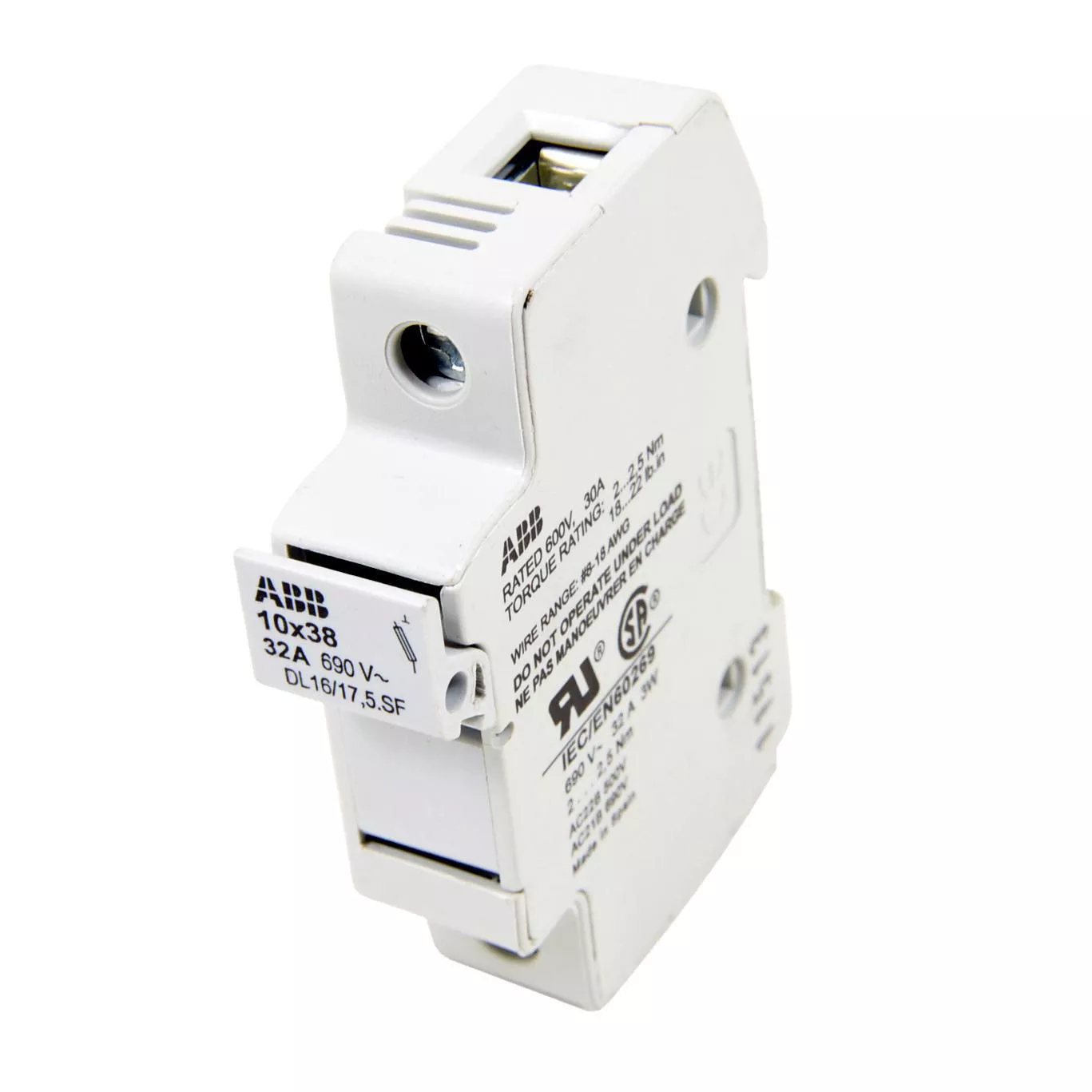

DL16/17.5.SF screw clamp terminal block. For 10×38 fuses, indicator 17.5 mm spacing. The new range of modular fuse holders provides safe operation, fast and simple multiple pole assembly, quick fuse installation and replacement.
Specifications
| Brand Name | ABB | Item Name | Terminal Block |
| Voltage Rating | 690 V | Amperage Rating | 32 A |
| Number of Poles | 1 | Conductor Size | 18-8 AWG |
| Mounting Type | DIN Rail 1-3 | Series | DL16/17.5.SF |
| Spacing | 17.5 mm | Connection Type | Screw Clamp |
| Color | Gray | For Use With | 10 x 38 mm Fuses |
| Standards | CE, EAC Certified | Application | Industrial Modular Fuse Holders |
| UPC | 804325461061 |
