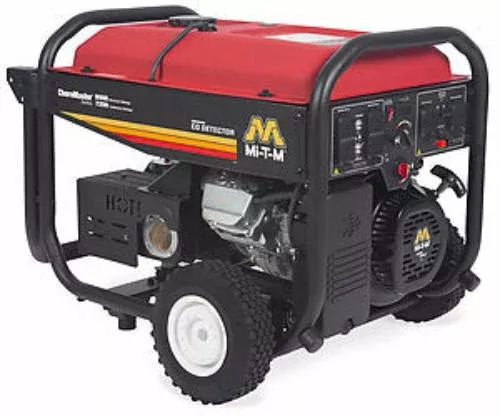

The ChoreMaster generators are designed to provide maximum power for contractors and electrical backup for power outages.
AlternatorCopper windings
EngineRecoil start · Electric start – sealed battery included
FramePowder coated wraparound frame · Handle, wheels and outlet covers
ComponentsFuel shut-off valve · Equipped with CO detector with automatic shutdown · Idle control · Digital display for voltage, hertz, run hours and total hours · USDA/USFS-approved spark arrestors
Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
Specifications
-
Max. AC Output
8000 watts
-
Rated AC Output
7200 watts
-
Displacement/ Engine
420cc Mi-T-M OHV
-
Alternator
Brushed, 120V/240V, 60Hz
-
Max. Amps (120V/240V)
66.6/33.3
-
Cont. Amps (120V/240V)
60.0/30.0
-
Receptacles
(2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock
-
Circuit Breakers
(1) Main Circuit Breaker; (2) 20A Toggle Circuit Breakers, Single Pole
-
Rated Speed
3600 RPM
-
Decibel Rating
85.0
-
Fuel Capacity
7.53 gallons
-
Run Time (At Full Load)
6.5 hours
