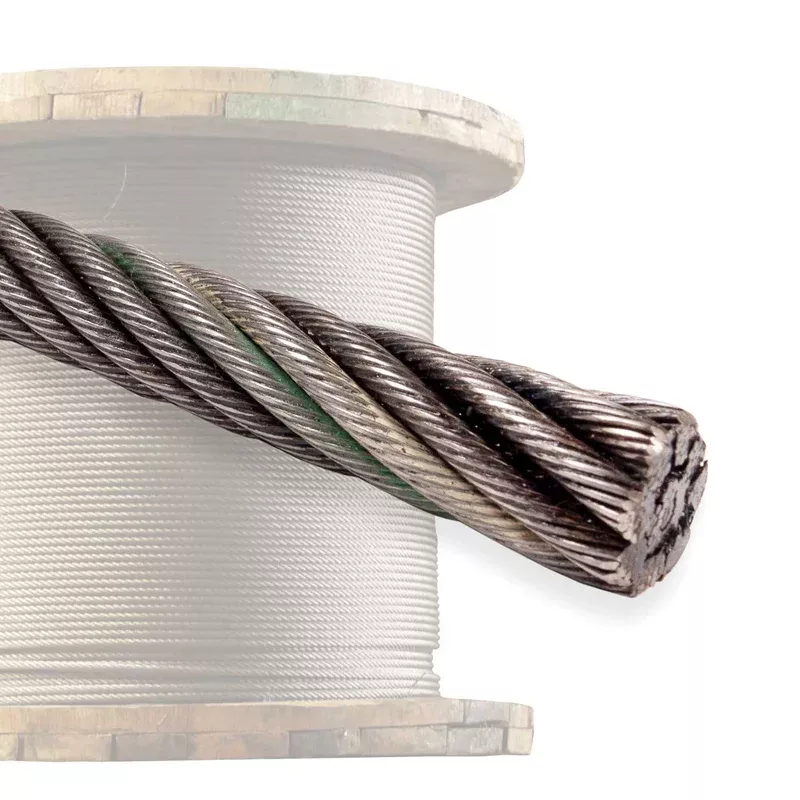

5/8″ 8×19 Spin-Resistant Wire Rope Cable
This 5/8″ 8×19 spin-resistant wire rope is designed to help minimize load rotation during lifting and hoisting operations. Its specialized construction features inner strands laid in the opposite direction of the outer strands, allowing rotational forces to counteract one another while under load. This design makes it well-suited for hoisting unguided loads with single-part or multi-part line systems where reducing load spin is important for safety and performance.
Spin-Resistant Wire Rope for Hoisting & Crane Applications
The 8×19 class combines flexibility, durability, and limited rotation resistance, making it a practical choice for lifting operations where some degree of spin control is required. As a Category 3 Rotation-Resistant Rope, it provides less rotation resistance than Category 2 constructions such as 19×7 or 19×19 compacted ropes, but offers improved durability and service life in many demanding applications.
This rope should not be used with a swivel, as doing so may negatively affect the rope’s rotational performance and structural integrity.
8×19 Wire Rope Configuration
Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in increased breaking strength and dependable performance under heavy loads.
The class of this wire rope is 8×19. These numbers nominally refer to the rope construction, consisting of eight outer strands surrounding the core, with approximately 15-26 wires making up each strand. The actual construction supplied is 8×25, providing a balance of flexibility, strength, and durability for lifting applications.
Bright Finish & IWRC Construction
This rope features a bright steel finish protected with A-1 petroleum-based lubricant applied to both internal and external wires. The lubricant helps reduce friction, minimize internal wear, and provide basic protection against moisture and corrosion.
The Independent Wire Rope Core (IWRC) provides superior support compared to fiber core constructions. IWRC wire rope offers increased crush resistance, improved load stability, and dependable operation in temperatures ranging from -40 F to 400 F.
Key Features
- 8×25 actual construction designed to reduce load rotation during lifting operations
- Category 3 rotation-resistant wire rope for controlled load handling
- EIPS-grade steel provides approximately 10% greater tensile strength than IPS grades
- Bright steel finish with lubricant reduces friction and internal wear
- IWRC core improves crushing resistance and load support
- Ideal for hoisting unguided loads with single-part or multi-part line systems
- Offers greater durability than many higher-category rotation-resistant rope designs
- Temperature range from -40 F to 400 F
- Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
- Should not be used with a swivel
Accessories & More
Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
