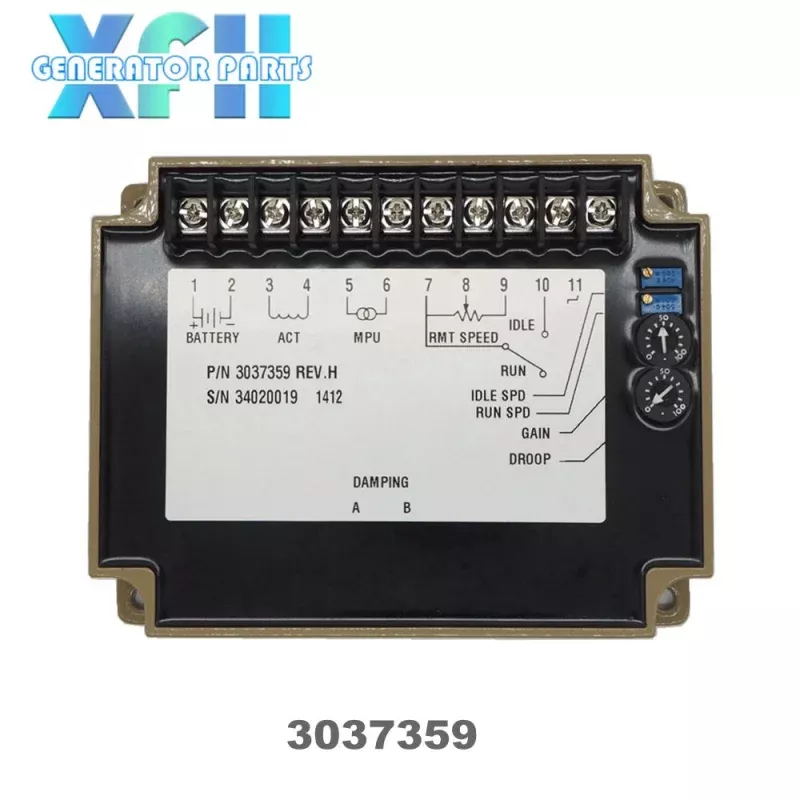

The 3037359 Diesel engine electronic speed governor control is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
SPECIFICATIONRPM Stability<0.25% Speed Range1KHz ~ 6.5KHz Thermal StabilityMax 0.7% IDLE Regulation260 20Hz DROOP RegulationMinimum 15Hz 6Hz/ 1 Amp Maximum: 400Hz 75Hz/ 1 Amp External Speed Regulation 200Hz (with 1 K connected) AUX Input Sensitivity 148Hz / 1V., 10Hz Impedance 1M Working Temp Range -40 ~ 85 CENVIRONMENTWorking Humidity Range Maximum 95% Stocking Temp -55 ~ 92 CShocking20-100HZ 500mm/Sec. INPUT POWER SUPPLYVoltage 24V Grounding Pole Negative pole Power Supply40mA Actuator Continuous CurrentMinimum 1A, Maximum 4.5A MPUSignal2 ~ 120V RMS
| RPMStability | <0.25% |
| SpeedRange | 1KHz~6.5KHz |
| ThermalStability | Max0.7% |
| IDLERegulation | 26020Hz |
| DROOPRegulation | Minimum15Hz6Hz/1Amp |
| Maximum:400Hz75Hz/1Amp | |
| ExternalSpeedRegulation | 200Hz(with1Kconnected) |
| AUXInputSensitivity | 148Hz/1V.,10Hz |
| Impedance | 1M |
| WorkingTempRange | -40~85C |
| ENVIRONMENT | |
| WorkingHumidityRange | Maximum95% |
| StockingTemp | -55~92C |
| Shocking | 20-100HZ500mm/Sec. |
| INPUTPOWERSUPPLY | |
| Voltage | 24V |
| GroundingPole | Negativepole |
| PowerSupply | 40mA |
| ActuatorContinuousCurrent | Minimum1A,Maximum4.5A |
| MPU | |
| Signal |
2~120VRMS |
